Akasison Siphonic Roof Drainage

Akasison Siphonic Roof Drainage Products

Features & Benefits

  • Siphonics Explained

    The Akasison siphonic system provides architects and hydraulic engineers maximum freedom when designing rainwater drainage. Siphonics design principles can be used on all building types where large volumes of water are to be removed efficiently and cost-effectively.

    Akasison requires far fewer downpipes than traditional gravity systems. Specially designed roof outlets, located in gutters, or membrane system roof/deck areas are connected to a common collector pipe located at a high level within the building. The collector pipe is installed horizontally, without gradient and is typical of smaller pipe diameter. When operating siphonically, the pipe network flows full, without air and with a higher velocity than traditional gravity systems, so pipes can be smaller.

    The horizontal collector pipe is routed to a convenient point in the building, such as a services riser. It then connects to a downpipe which is the engine room of the system. A full bore plug of water accelerates as it falls under gravity through the downpipe, creating a vacuum action that is used to efficiently and rapidly suck rainwater from the roof.

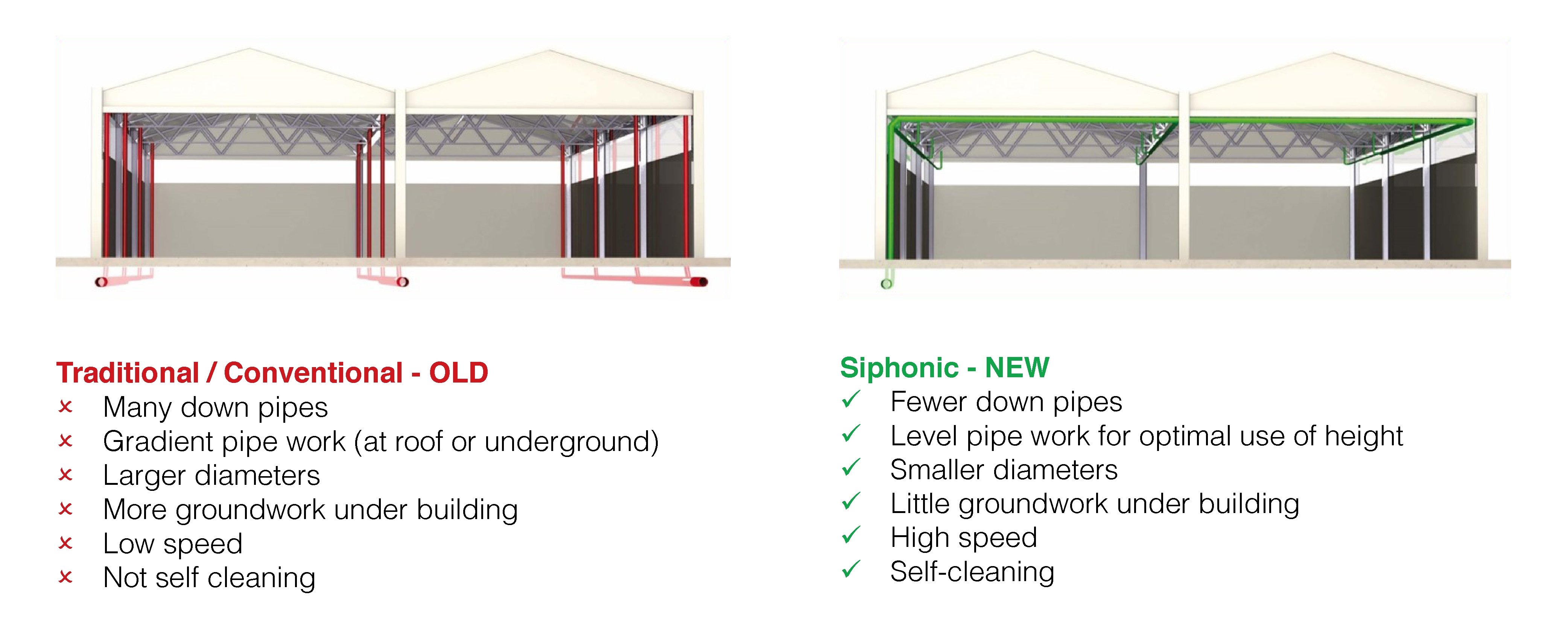

    In a traditional drainage system, rainwater on a roof surface flows to the lowest point under gravity. A roof outlet at the gutter low point enables rainwater to connect via a downpipe to the underground drainage system. Both water and air are drawn in and travel through the downpipe in a spiral motion. The capacity of the roof outlet determines how much water can enter the downpipe.

    Akasison siphonic outlets are designed to streamline rainwater flow. As rainstorm increases in intensity, the outlets become submerged, preventing air from entering the system. Small diameter pipes beneath the outlets prime quickly and generate plugs of water that flow to the downpipe. Water falling vertically through a downpipe accelerates under gravity and creates negative pressure behind it. The vacuum generated and eventual 100% filling of the pipework, translates back through the system and siphons or sucks the water off the roof.

  • Siphonic System Advantage

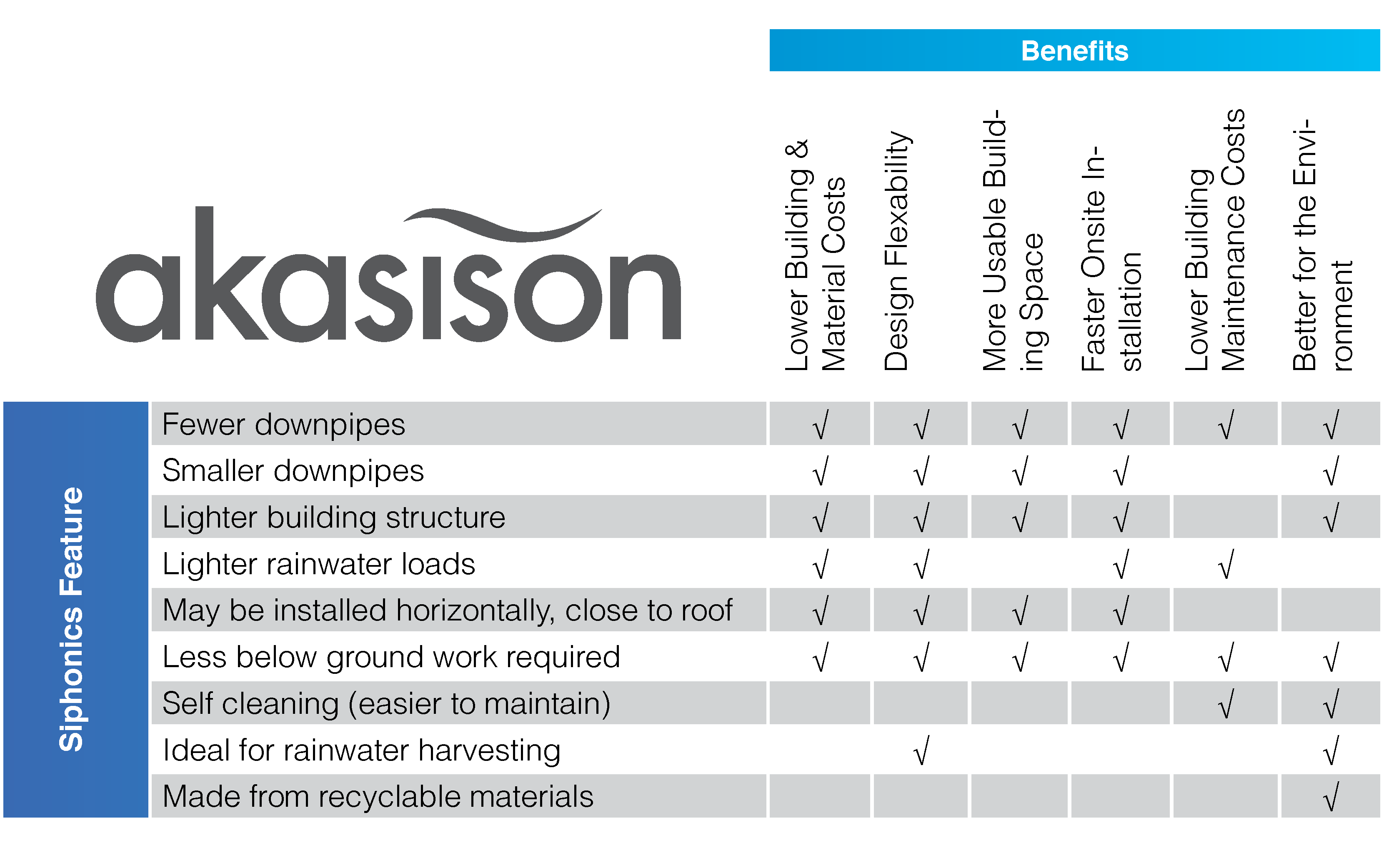

    The Akasison siphonic roof drainage system offers many advantages compared to conventional drainage for all building types:

    Siphonic roof drainage has advantages in material price, required labour on site and optimises the space in the building.

  • The Akasison Solution

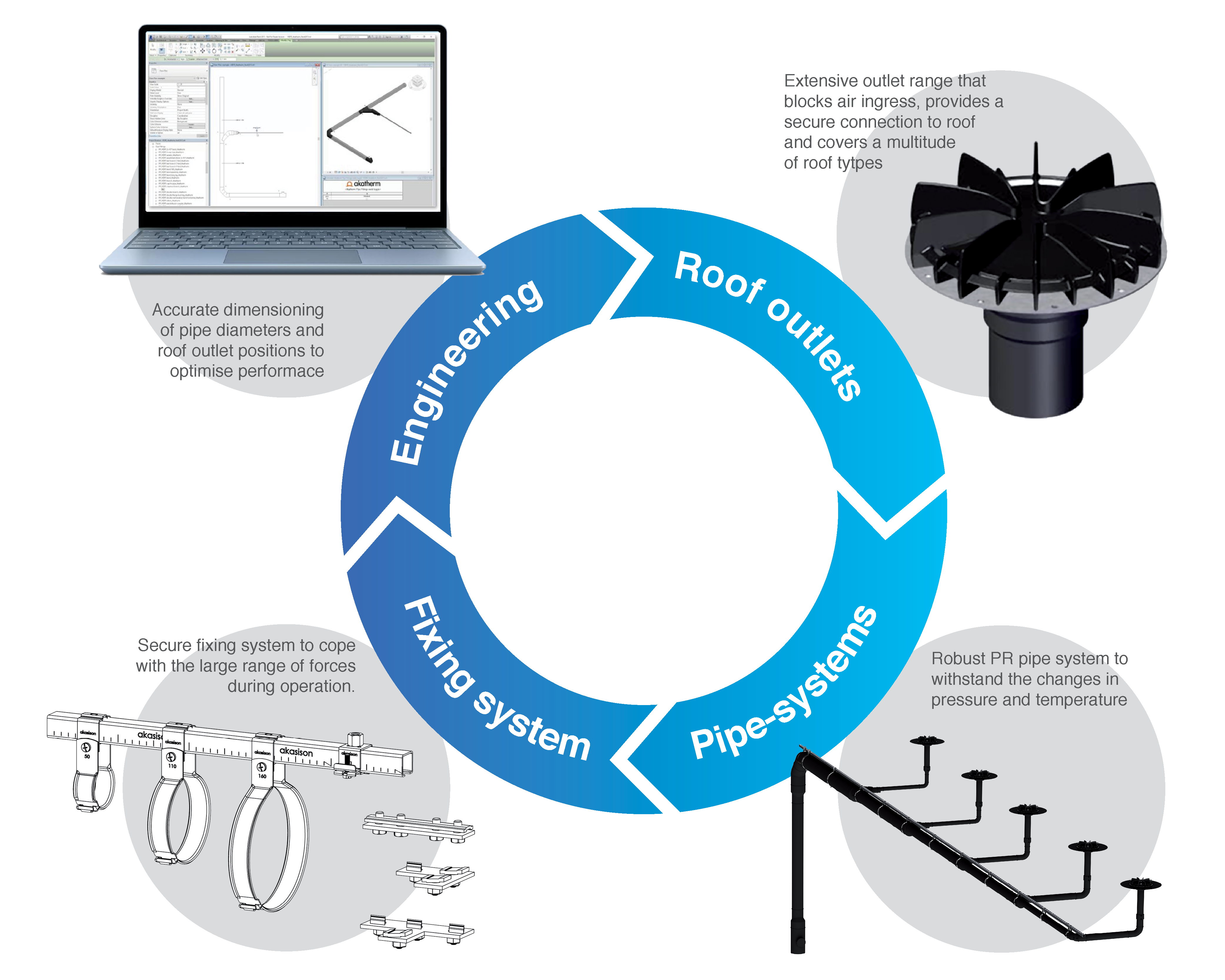

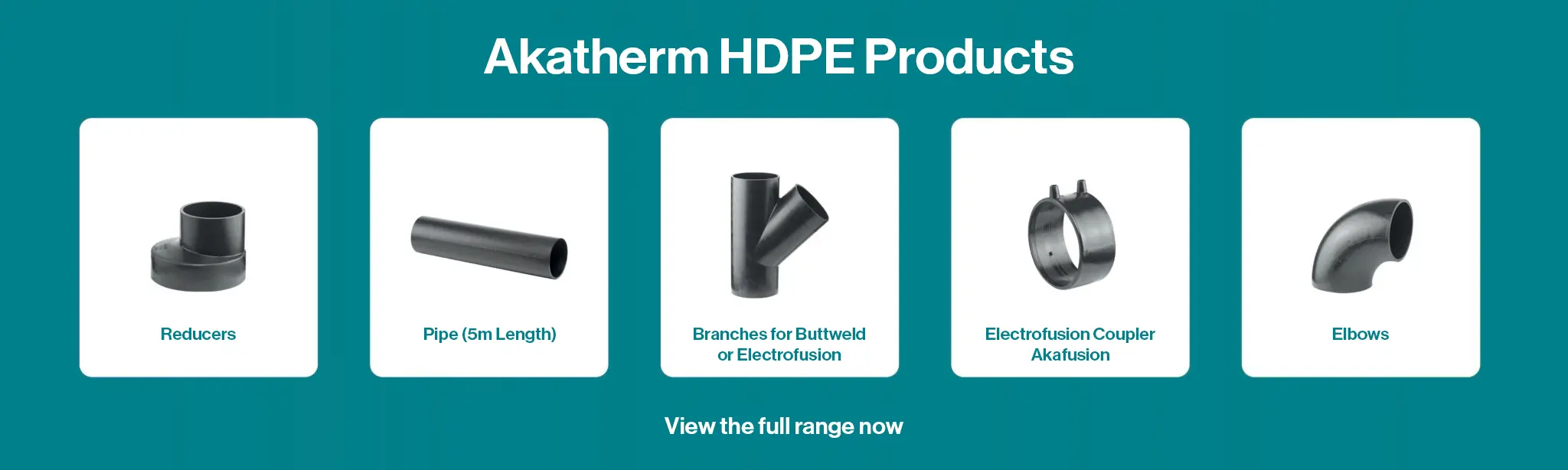

    Akasison is more than a collection of components. We combine specific siphonic outlets, dedicated bracketing and the trusted Akatherm HDPE pipe system together with a professional siphonic design service, local product availability and a complete project support service by Vinidex.
    On www.vinidex.com.au technical support documentation is available as well as the complete Akasison product range as a REVIT content package to include in the BIM project model.

    Akasison is a highly circular solution, using fewer pipes that are smaller in diameter than a conventional gravity drainage solution, using components that are up to 90% re-usable at the end of the project life.



  • Training and support

    A great deal of knowledge is involved in every step of our design and development process, right through to completion. Knowledge of fluid dynamics, legislation and regulations, the application of standards and our own procedures. But especially about how things work in practice. We offer training and support so that we can continue to lead the way in the market with our Akasison system. Everything has to be in good order on the roof.

Product Properties
Certifications & Approvals
Installation
Projects
Downloads
Size Range
40-315mm
Material
High density polyethylene (HDPE)
Temperature
-40C to +80C
Location
Underground or above-ground where not exposed to direct sunlight.
Chemical
Chemical resistance information from Akatherm.

Green Star & Sustainability

Green Star Sustainability Credits may be earnt by using Akatherm High Density Polyethylene (HDPE). For details contact your Vinidex representative.

Akasison roof outlet XL75 installation

Akasison bracket over the rail installation

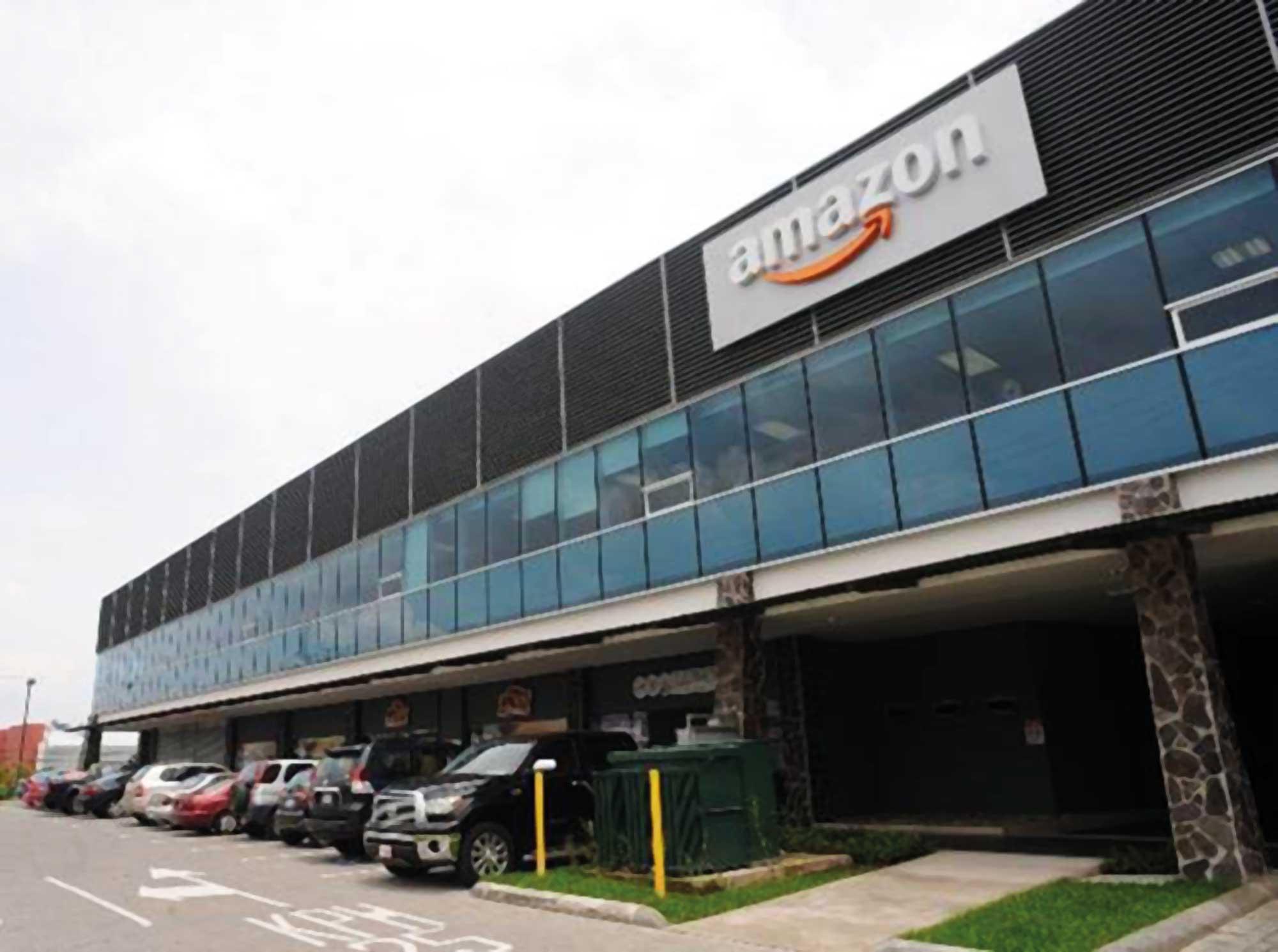

AMAZON B8 BUILDING

Amazon

New building Amazon

  • 8.200 m2 roof size
  • 34 roof outlets
  • 550 m pipe
  • Installation time : 4 weeks

IKEA BAYONNE

IKEA

New building Ikea Pisa

  • 21.000 m2 roof size
  • 50 roof outlets
  • 1.470 m pipe
  • Installation time : 8 weeks

Brochure

Range Document

Catlaogue

Datasheet

Datasheet

Datasheet

Datasheet Rail

PDF download

Datasheet

Datasheet

Datasheet

Datasheet

Datasheet

Datasheet
