Electrical & Communications Systems

Features & Benefits

  • PVC Conduit Jointing

    PVC conduits have an integral socket for solvent cement jointing.

  • Corflo Conduit

    Vinidex Corflo® is high performance double-wall PVC pipe with a smooth internal bore and corrugated exterior for electrical and stormwater applications. Corflo® electrical conduit is coloured orange and Corflo® communications conduit is coloured white.

    The technologically advanced design and manufacture of Corflo® enables superior characteristics to be achieved, as follows:

    • A material efficient product
    • Lighter weight per unit length
    • Superior strength
    • Long pipe length
    • Excellent handling and durability
    • High performance and cost efficiency
  • Polyethylene Conduit

    Polyethylene (PE) conduit for electrical applications is coloured orange whereas conduit for telecommunications is coloured white, black, or black with white stripes. PE is available in long lengths in coils, is flexible and can be installed below ground using ploughing-in, directional drilling or open trench techniques.

  • Cable Cover

    Cable Cover is polymeric cable protection available in rolls or sheets. It provides increased protection for underground cables.

Product Properties
Certifications & Approvals
Installation
Projects
Downloads

Size Range

Electrical Product Range – 20-200mm
Communications Product Range – 20-150mm
Telstra Product Range – 20-100mm

Material Properties

Please refer to Downloads tab above for further information in the Product Catalogue.

Colour

  • Light duty conduit – coloured orange
  • Medium duty conduit – coloured grey
  • Heavy duty conduit – coloured orange
  • Communications conduit – coloured white

Temperature

0° to 60°C

Chemical

Vinidex conduits are resistant to corroding agents such as acids and alkalis. However, do not use them if they are likely to be exposed to solvents such as ketones, esters, aromatic and chlorinated hydrocarbons. Please refer to Vinidex Chemical Resistance Guide.

Exposure

Conduits suitable for applications exposed to UV radiation are marked with the letter “T”.

Location

Underground or above-ground where not exposed to direct sunlight.

Best Environmental Practice

BEP-PVC-570

PDF download

Green Star

Vinidex Electrical and Communications PVC pipes manufactured from BEP PVC have an EPD registered with the Australasian EPD Programme. This allows constructors to claim credit points under the Green Building Council of Australia’s (GBCA) Green Star ratings tools and the Infrastructure Sustainability Council of Australia’s (ISCA) Infrastructure Sustainability rating scheme.

Environmental Product Declaration

Safety Data Sheets (SDS)

Click here to access our Safety Data Sheets page.

Standards for PVC Conduit

Vinidex PVC Electrical Conduit and Communications Conduit is manufactured in accordance with AS/NZS 2053.2 – Conduits and fittings for electrical installations – Rigid plain conduits of insulating material.

Vinidex Corflo® PVC Conduit is manufactured in accordance with AS/NZS 2053.6 – Conduits and fittings for electrical installations – Profile-wall smooth-bore conduits and fittings of insulating material.



Standards

For installation of conduit, refer to AS/CA S009 – Installation requirements for customer cabling (Wiring Rules) and AS/NZS 3000 – Electrical Installations (known as Australian/New Zealand Wiring Rules).

Quick Reference Installation Guide

Corflo® Meets Environmental Demands - CityLink Tulla Widening Project

The material efficiency of Corflo® Heavy Duty helped meet the strict environmental demands of the project…Read more
Product Properties

Size Range

Electrical Product Range – 20-200mm
Communications Product Range – 20-150mm
Telstra Product Range – 20-100mm

Material Properties

Please refer to Downloads tab above for further information in the Product Catalogue.

Colour

  • Light duty conduit – coloured orange
  • Medium duty conduit – coloured grey
  • Heavy duty conduit – coloured orange
  • Communications conduit – coloured white

Temperature

0° to 60°C

Chemical

Vinidex conduits are resistant to corroding agents such as acids and alkalis. However, do not use them if they are likely to be exposed to solvents such as ketones, esters, aromatic and chlorinated hydrocarbons. Please refer to Vinidex Chemical Resistance Guide.

Exposure

Conduits suitable for applications exposed to UV radiation are marked with the letter “T”.

Location

Underground or above-ground where not exposed to direct sunlight.

Certifications & Approvals

Best Environmental Practice

BEP-PVC-570

PDF download

Green Star

Vinidex Electrical and Communications PVC pipes manufactured from BEP PVC have an EPD registered with the Australasian EPD Programme. This allows constructors to claim credit points under the Green Building Council of Australia’s (GBCA) Green Star ratings tools and the Infrastructure Sustainability Council of Australia’s (ISCA) Infrastructure Sustainability rating scheme.

Environmental Product Declaration

Safety Data Sheets (SDS)

Click here to access our Safety Data Sheets page.

Standards for PVC Conduit

Vinidex PVC Electrical Conduit and Communications Conduit is manufactured in accordance with AS/NZS 2053.2 – Conduits and fittings for electrical installations – Rigid plain conduits of insulating material.

Vinidex Corflo® PVC Conduit is manufactured in accordance with AS/NZS 2053.6 – Conduits and fittings for electrical installations – Profile-wall smooth-bore conduits and fittings of insulating material.



Installation

Standards

For installation of conduit, refer to AS/CA S009 – Installation requirements for customer cabling (Wiring Rules) and AS/NZS 3000 – Electrical Installations (known as Australian/New Zealand Wiring Rules).

Quick Reference Installation Guide

Projects

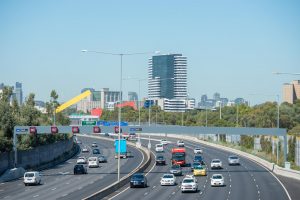

Corflo® Meets Environmental Demands - CityLink Tulla Widening Project

The material efficiency of Corflo® Heavy Duty helped meet the strict environmental demands of the project…Read more
