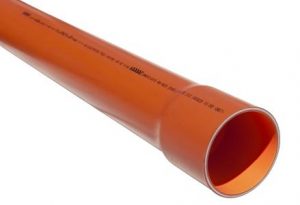

Light Duty PVC Orange Electrical Conduit



Contact Vinidex Customer Service for availability of products on this page.

These products are of limited application and must be only used to specification. Attention is drawn to the fact that the nominal sizes of conduits 16-63mm refer to the outside diameter, whereas sizes 80-150mm refer to approximate internal diameter. 6 metre lengths can be made available for HD conduit above 25mm.

Vinidex Code Nominal Size (mm) Mean O.D. Dm (mm) Pipe Class Wall Thickness T (mm) Mean Mouth Diameter D (mm) Effective Length L (mm) Socket Length L1 (mm) Approx. Weight (kg) Crate Quantity
11040 80 89 LD 2.4 6 76 6.5 100
11100 100 114 LD 3 6 99 10.5 57
11200 125 140 LD 3.7 6 115 16 38
11320 150 160 LD 4.2 6 124 20.7 26
11330 200 225.6 LD 6.1 226.3 6 157 38 10
