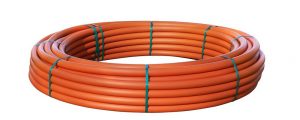

Polyethylene Electrical Conduit SDR13.6
| Vinidex Code | SDR | Nominal Size (mm) | Mean I.D (mm) | Wall Thickness T (mm) | Effective Length L (m) | Colour | Min. Quantity |
| 23097 | 13.6 | 63 | 53 | 4.7 | 140 | Orange Co-ex | 1 |
| 22985 | 13.6 | 110 | 93 | 8.1 | 100 | Orange Co-ex | 1 |
| 23021 | 13.6 | 125 | 106 | 9.2 | 100 | Orange Co-ex | 1 |
| 23068 | 13.6 | 140 | 118 | 10.3 | 100 | Orange Co-ex | 1 |
| 28985 | 13.6 | 160 | 135.1 | 11.8 | 100 | Orange Co-ex | 1 |
| 28753 | 13.6 | 180 | 153 | 13.3 | 12 | Orange Co-ex | 1 |
| 28641 | 13.6 | 180 | 153 | 13.3 | 90 | Orange Co-ex | 1 |
