Contact Vinidex Customer Service for availability of products on this page.

Vinidex Code Nominal Size (mm) Angle Length (mm) C'line Radius L (mm) Min. Quantity
32440 20 45 166 152 1
32450 20 90 292 152 1
32460 25 45 178 152 1
32470 25 90 298 152 1
32480 32 45 331 304 1
32490 32 90 572 304 1
32500 50 45 356 304 1
32510 50 90 635 304 1
32512 80 45 521 375 1
32515 80 45 698 600 1
32521 80 90 1204 375 1
32669 100 45 650 450 1
32670 100 45 700 584 1

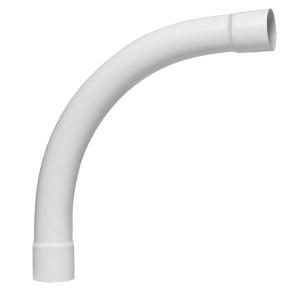

32682 100 90 1145 584 1

Product Support

Need some help? View our Product Support area for downloads, installations and jointing procedures.
