Flange Adaptors OD 63-315mm



Contact Vinidex Customer Service for availability of products on this page.

Viking Johnson Aquafast Flange Adaptors have a unique pressure sealing system that offers a simple and reliable solution for connecting HDPE and PVC pipe. With a visual indicator confirming correct fitment and no requirement for support liner the Aquafast Flange Adaptor is effortless.
Working Pressure 16 bar (Water)
Gasket EPDM
Fasteners A4 316 SS or A1 Sheraplex Coated
Torque Rate Visual Indicator
Flange BS EN ISO 7005 PN10 & PN16

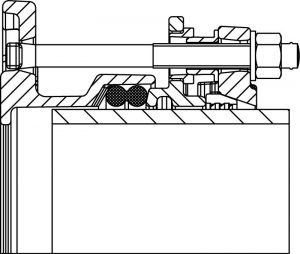

Vinidex Code - EPDM A1 Fasteners Vinidex Code - EPDM A4 Fasteners Pipe OD (mm) Flange Drillings Bolts (Number - Diameter x Length) Overall Length A (mm) Diameter B (mm) Bore C (mm) Flange Thickness D (mm) Setting Gap (mm) Min Max Approx. Weight (kg)
59532 59545 63 50/65 PN10 | 16 2-M12 x 135 144 185 50 17 20 25 3.7
59533 59546 75 65/80 PN10 | 16 2-M12 x 135 144 200 65 17 20 25 4.3
59534 59547 90 65/80 PN10 | 16 2-M12 x 135 144 200 80 17 20 25 4.4
59535 59548 110 100 PN10 | 16 2-M12 x 135 144 229.5 100 17 20 25 5.4
59536 59549 125 100/125 PN10 | 16 2-M12 x 135 144 250 100 17 20 25 6.3
59537 59550 140 125 PN10 | 16 4-M12 x 135 144 250 125 17 20 25 6.4
59538 59551 160 150 PN10 | 16 4-M12 x 135 144 285.5 150 17 25 35 7.3
59539 59552 180 150 PN10 | 16 4-M12 x 185 195 285.5 150 17 25 35 10.2
59540 59553 200 200 PN10 | 16 4-M12 x 185 195 343 190 18 25 35 13
59541 59554 225 200 PN10 | 16 4-M16 x 195 205 342.5 190 18 25 35 14.5
59542 59555 250 250 PN10 | 16 6-M16 x 195 208 406 240 20 25 35 19.5
59544 59557 315 300 PN10 | 16 6-M16 x 195 209 483 300 21.5 25 35 24.6
