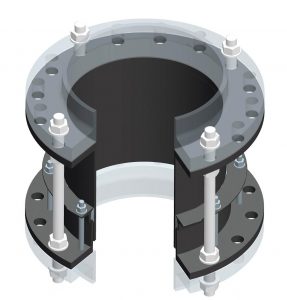

Dismantling Joint DN50-1200

Contact Vinidex Customer Service for availability of products on this page.

Higher PN ratings and drilling table configurations are available – please contact Vinidex for further details.

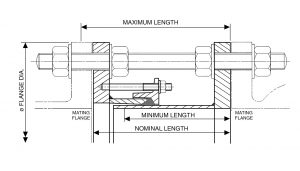

Vinidex Code - EPDM A4 Fasteners	Nominal DN (mm)	Drilling Table	Flange Thickness (mm)	Flange OD (mm)	Flange to Flange Details - Nominal Length	Flange to Flange Details - Minimum Length	Flange to Flange Details - Maximum Length	Stainless Steel Tie Rod - Diameter x Thickness (mm)	No.	Total Weight (kg)
59591	50	BS EN1092-1 PN16	17	165	194	174	214	M16 x 300	4	8.2
59592	65	BS EN1092-1 PN16	17	185	194	174	214	M16 x 300	4	9.3
59593	80	BS EN1092-1 PN16	17	200	194	174	214	M16 x 300	4	10.4
59594	100	BS EN1092-1 PN16	17	220	194	174	214	M16 x 300	4	11.6
59595	125	BS EN1092-1 PN16	17	250	194	174	214	M16 x 300	4	13.5
59596	150	BS EN1092-1 PN16	17	285	194	174	214	M20 x 310	4	17.7
59597	200	BS EN1092-1 PN16	20	340	194	174	214	M20 x 310	4	24.1
59598	250	BS EN1092-1 PN16	19	405	194	174	214	M24 x 330	4	32.8
59599	300	BS EN1092-1 PN16	19	460	194	174	214	M24 x 330	4	40
59600	350	BS EN1092-1 PN16	18	520	295	270	320	M24 x 450	4	63.4
59601	400	BS EN1092-1 PN16	18	580	295	270	320	M27 x 460	4	75.2
59602	450	BS EN1092-1 PN16	23	640	300	275	325	M27 x 470	5	99
59603	500	BS EN1092-1 PN16	23	715	300	275	325	M30 x 480	5	121
59604	600	BS EN1092-1 PN16	23	840	300	275	325	M33 x 500	5	154
59605	700	BS EN1092-1 PN16	23	910	300	275	325	M33 x 520	6	162
59606	800	BS EN1092-1 PN16	23	1025	300	275	325	M36 x 540	8	190.5
59607	900	BS EN1092-1 PN16	25	1125	307	277	337	M36 x 570	10	251.5
59608	1000	BS EN1092-1 PN16	25	1255	307	277	337	M39 x 590	10	306.5
59609	1100	BS EN1092-1 PN16	38	1355	320	290	350	M39 x 610	12	438
59610	1200	BS EN1092-1 PN16	38	1485	320	290	350	M45 x 640	10	529
