Couplings DN40 – DN600



Contact Vinidex Customer Service for availability of products on this page.

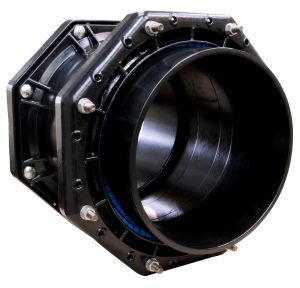

Viking Johnson UltraGrip Coupling is designed to offer a solution to joining plain-ended pipes and contain a end load restraint mechanism that grips and seals onto a variety of pipe materials including Cast Iron, Ductile Iron, Steel, PVC and PE. The UltraGrip coupling accommodates high tolerance on pipe OD’s up to 54mm and angular deflection up to 8 degrees. Internal Pipe Liners are required when used on PE and thin walled PVC Pipe.

Working Pressure DN40-DN300 16bar (Water)
Working Pressure DN350-DN600 10bar (Water)
Working Pressure DN40-DN400 5bar (Gas)
Gasket EPDM (NBR Available on request)
Fasteners A4 316 SS or A2 304 SS
Torque Rate M12 = 55-70Nm, M16 = 95-120Nm, M20 = 200-225Nm

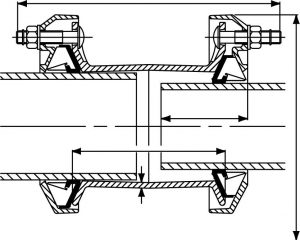

Vinidex Code - EPDM A2 Fasteners Vinidex Code - EPDM A4 Fasteners Nominal Size DN (mm) Size Range Min (mm) Size Range Max (mm) Insertion Depth D Min Insertion Depth D Max Diameter A (mm) Overall Length B (mm) Sleeve L x T (mm x mm) Bolts (Number - Diameter x Length) Approx. Weight (kg)
59558 57392 40 43.5 63.5 65 95 168 262 144.0 x 7.0 6-M12 x 70 5.2
59559 57393 50 48 71 65 110 178 296 180.0 x 5.0 6-M12 x 70 5.6
59560 57394 65 63 83.7 65 95 189 262 144.0 x 7.0 6-M12 x 70 6.1
59561 57395 80 85.7 107 65 110 212 288 170.0 x 7.0 6-M12 x 70 7.7
59562 57396 100 107 133.2 90 125 280 342 180.0 x 7.0 6-M16 x 93 13.4
59563 57397 125 132.2 160.2 90 125 305 342 180.0 x 6.0 6-M16 x 93 14.3
59564 57398 150 158.2 192.2 90 135 339 386 213.0 x 6.5 6-M16 x 93 19.9
59565 57399 175 192.2 226.9 125 165 403 400 220.0 x 6.5 10-M16 x 93 33.2
59566 57400 200 218.1 256 125 165 432 400 220.0 x 6.5 10-M16 x 93 35
59567 57401 250 266.2 310 125 165 476 524 300.0 x 8.0 12-M16 x 120 52.3
59568 57402 300 315 356 125 200 522 524 300.0 x 8.0 16-M16 x 120 63.2
59569 57403 350 352.2 396 125 200 577 525 300.0 x 7.5 18-M16 x 120 73.9
59570 57404 400 398.2 442 125 200 623 525 300.0 x 7.5 20-M16 x 120 81.9
59571 57405 450 448 492 135 215 713 545 300.0 x 7.5 24-M16 x 150 135
59572 57406 500 498 552 155 215 803 565 300.0 x 7.5 18-M20 x 150 142
59573 57407 500 558 608 155 215 860 565 300.0 x 7.5 20-M20 x 150 162
59574 57408 600 604 648 155 215 900 565 300.0 x 7.5 24-M20 x 150 181
59575 57409 600 676 726 155 215 975 565 300.0 x 7.5 28-M20 x 150 202
