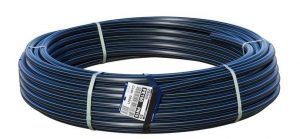

PE Pressure Pipe PE100 Blue Stripe SDR13.6 PN12.5



Contact Vinidex Customer Service for availability of products on this page.



Vinidex Code Nominal Size DN (mm) SDR PN Material Colour Length (m) Weight (kg/length)
27010 20 13.6 12.5 PE100 Black/Blue Stripes 3 0.28
27011 25 13.6 12.5 PE100 Black/Blue Stripes 3 0.42
26942 20 13.6 12.5 PE100 Black/Blue Stripes 50 4.7
26943 20 13.6 12.5 PE100 Black/Blue Stripes 200 19
26918 25 13.6 12.5 PE100 Black/Blue Stripes 25 3.5
26919 25 13.6 12.5 PE100 Black/Blue Stripes 50 7
26920 25 13.6 12.5 PE100 Black/Blue Stripes 200 28.2
26945 32 13.6 12.5 PE100 Black/Blue Stripes 25 5.8
26923 32 13.6 12.5 PE100 Black/Blue Stripes 50 11.4
26924 32 13.6 12.5 PE100 Black/Blue Stripes 200 45.6
25266 32 13.6 12.5 PE100 Black/Blue Stripes 3 0.68
26947 40 13.6 12.5 PE100 Black/Blue Stripes 25 9.04
26927 40 13.6 12.5 PE100 Black/Blue Stripes 50 17.81
26896 40 13.6 12.5 PE100 Black/Blue Stripes 150 54.21
26934 50 13.6 12.5 PE100 Black/Blue Stripes 50 27.58
26935 50 13.6 12.5 PE100 Black/Blue Stripes 150 82.47
26949 63 13.6 12.5 PE100 Black/Blue Stripes 6 5.29
26906 63 13.6 12.5 PE100 Black/Blue Stripes 50 44.1
27323 63 13.6 12.5 PE100 Black/Blue Stripes 100 87.93
26900 75 13.6 12.5 PE100 Black/Blue Stripes 100 124.48
26977 90 13.6 12.5 PE100 Black/Blue Stripes 12 21.51
22205 90 13.6 12.5 PE100 Black/Blue Stripes 100 180
26980 110 13.6 12.5 PE100 Black/Blue Stripes 12 31.8
22209 110 13.6 12.5 PE100 Black/Blue Stripes 100 266.4
26984 125 13.6 12.5 PE100 Black/Blue Stripes 12 40.8
22203 125 13.6 12.5 PE100 Black/Blue Stripes 100 341.91
27681 160 13.6 12.5 PE100 Black/Blue Stripes 100 562.9
26844 180 13.6 12.5 PE100 Black/Blue Stripes 12 85.38

Other PE Pressure Pipe for Drinking Water – Blue Products

PE Pressure Pipe PE100 Blue Stripe SDR11 PN16
PE Pressure Pipe PE100 Blue Stripe SDR17 PN10
PE Pressure Pipe PE100 Blue Stripe SDR21 PN8
