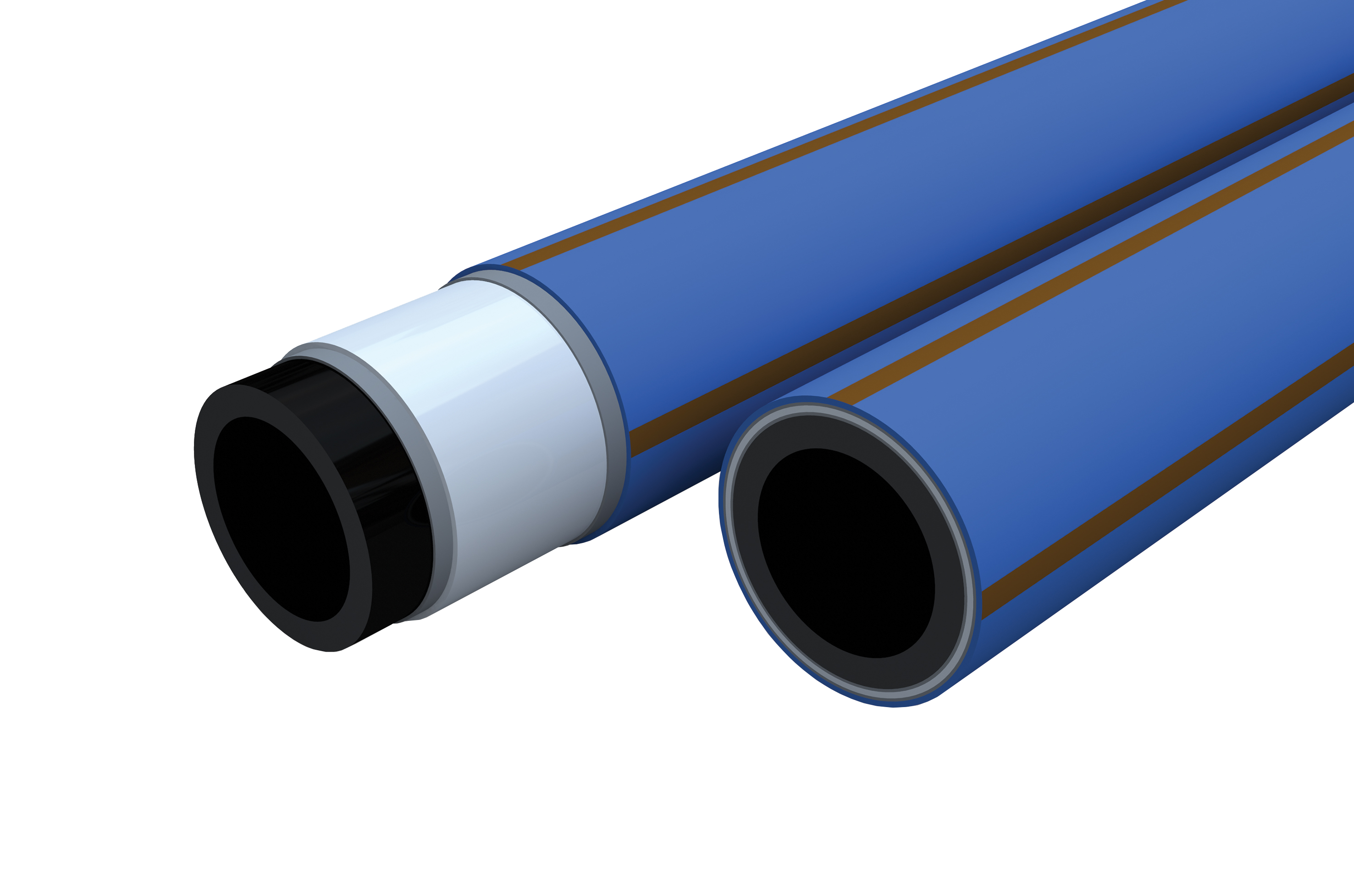

Protecta-Line® SDR 11 PE100 PN16



As a specialised product, longer lead times on some diameters may apply,
please contact our customer service & projects team for more information.





Vinidex Code Nominal Size DN (mm) SDR PN Material Colour/Configuration Length (m) Approx. Weight (kg/length)
94519 63 SDR11 16 PE100 Blue / Brown Stripe 6m 7.8
94520 90 SDR11 16 PE100 Blue / Brown Stripe 6m 16
94521 110 SDR11 16 PE100 Blue / Brown Stripe 6m 22
94522 125 SDR11 16 PE100 Blue / Brown Stripe 6m 28
94523 160 SDR11 16 PE100 Blue / Brown Stripe 6m 46
94518 180 SDR11 16 PE100 Blue / Brown Stripe 6m 57
94524 225 SDR11 16 PE100 Blue / Brown Stripe 6m 87
94525 250 SDR11 16 PE100 Blue / Brown Stripe 6m 106
94526 280 SDR11 16 PE100 Blue / Brown Stripe 6m 132
94527 315 SDR11 16 PE100 Blue / Brown Stripe 6m 166
94528 355 SDR11 16 PE100 Blue / Brown Stripe 6m 209
94529 400 SDR11 16 PE100 Blue / Brown Stripe 6m 263
94530 450 SDR11 16 PE100 Blue / Brown Stripe 6m 332
94531 500 SDR11 16 PE100 Blue / Brown Stripe 6m 407
94532 560 SDR11 16 PE100 Blue / Brown Stripe 6m 508
94533 630 SDR11 16 PE100 Blue / Brown Stripe 6m 641
Vinidex Code Nominal Size DN (mm) SDR PN Material Colour/Configuration Length (m) Approx. Weight (kg/length)
94534 90 SDR11 16 PE100 Blue / Brown Stripe 11.8m 31
94535 110 SDR11 16 PE100 Blue / Brown Stripe 11.8m 44
94510 125 SDR11 16 PE100 Blue / Brown Stripe 11.8m 55
94536 160 SDR11 16 PE100 Blue / Brown Stripe 11.8m 90
94511 180 SDR11 16 PE100 Blue / Brown Stripe 11.8m 112
94514 225 SDR11 16 PE100 Blue / Brown Stripe 11.8m 171
94537 250 SDR11 16 PE100 Blue / Brown Stripe 11.8m 209
94538 280 SDR11 16 PE100 Blue / Brown Stripe 11.8m 260
94539 315 SDR11 16 PE100 Blue / Brown Stripe 11.8m 326
94540 355 SDR11 16 PE100 Blue / Brown Stripe 11.8m 411
94541 400 SDR11 16 PE100 Blue / Brown Stripe 11.8m 518
94542 450 SDR11 16 PE100 Blue / Brown Stripe 11.8m 653
94543 500 SDR11 16 PE100 Blue / Brown Stripe 11.8m 801
94544 560 SDR11 16 PE100 Blue / Brown Stripe 11.8m 999
94545 630 SDR11 16 PE100 Blue / Brown Stripe 11.8m 1261
