Contact Vinidex Customer Service for availability of products on this page.

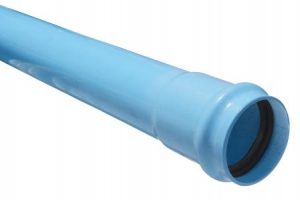

Supermain® PVC-O Series 2 Pipe
| Vinidex Code | Nominal Size DN (mm) | MRS | PN | Stiffness | Mean Outside Diameter min (mm) | Max (mm) | Wall Thickness e - min (mm) | Inside Diameter (mm) | Length (m) | Application | Colour | Approx. Weight (kg/length) |
| 17220 | 100 | 400 | 12.5 | 121.7 | 122.1 | 3 | 115.4 | 6 | Potable water | Blue | 11 | |
| 17230 | 200 | 400 | 12.5 | 231.9 | 232.6 | 5.7 | 220.1 | 6 | Potable water | Blue | 40 | |
| 17221 | 100 | 500 | 16 | 121.7 | 122.1 | 3 | 115.4 | 6 | Potable water | Blue | 11 | |
| 17491 | 100 | 450 | 16 | SN10 | 121.7 | 122.1 | 3.4 | 114.5 | 6 | Potable water | Blue | 12 |
| 17226 | 150 | 500 | 16 | 177.1 | 177.7 | 4.4 | 167.9 | 6 | Potable water | Blue | 23 | |
| 17400 | 150 | 500 | 16 | Green | 22.9 | |||||||
| 17492 | 150 | 450 | 16 | SN10 | 177.1 | 177.7 | 4.9 | 166.9 | 6 | Potable water | Blue | 25 |
| 17231 | 200 | 500 | 16 | 231.9 | 232.6 | 5.7 | 220.1 | 6 | Potable water | Blue | 40 | |
| 17266 | 200 | 450 | 16 | 231.9 | 232.6 | 6.4 | 218.6 | 6 | Potable water | Blue | 42 | |
| 17241 | 225 | 500 | 16 | 258.9 | 259.7 | 6.4 | 245.6 | 6 | Potable water | Blue | 50 | |
| 17455 | 250 | 500 | 16 | 285.8 | 286.7 | 7 | 271.4 | 6 | Potable water | Blue | 60 | |
| 17459 | 250 | 450 | 16 | 285.8 | 286.7 | 7.9 | 270 | 6 | Potable water | Blue | 67 | |
| 17464 | 300 | 500 | 16 | 344.9 | 346 | 8.5 | 327.4 | 6 | Potable water | Blue | 88 | |
| 17461 | 300 | 450 | 16 | 344.9 | 346 | 9.5 | 325.9 | 6 | Potable water | Blue | 88 | |
| 17493 | 200 | 500 | 20 | SN10 | 231.9 | 232.6 | 7.1 | 217.1 | 6 | Potable water | Blue | 47 |
| 17504 | 150 | 400 | 12.5 | 177.1 | 177.7 | 4.4 | 167.9 | 6 | Pressure sewer | Cream | 23 | |
| 17536 | 250 | 400 | 12.5 | 285.8 | 286.7 | 7 | 271.4 | 6 | Pressure sewer | Cream | 59 | |
| 17496 | 100 | 500 | 16 | 121.7 | 122.1 | 3 | 115.4 | 6 | Pressure sewer | Cream | 11 | |
| 17495 | 100 | 450 | 16 | SN10 | 121.7 | 122.1 | 3.4 | 114.5 | 6 | Pressure sewer | Cream | 12 |
| 17498 | 150 | 500 | 16 | 177.1 | 177.7 | 4.4 | 167.9 | 6 | Pressure sewer | Cream | 23 | |
| 17487 | 150 | 450 | 16 | 177.1 | 177.7 | 4.9 | 166.9 | 6 | Pressure sewer | Cream | 25 | |
| 17252 | 200 | 500 | 16 | 231.9 | 232.6 | 5.7 | 220.1 | 6 | Pressure sewer | Cream | 40 | |
| 17253 | 225 | 500 | 16 | 258.9 | 259.7 | 6.4 | 245.6 | 6 | Pressure sewer | Cream | 50 | |
| 17474 | 250 | 500 | 16 | 285.8 | 286.7 | 7 | 271.4 | 6 | Pressure sewer | Cream | 60 | |
| 17469 | 250 | 450 | 16 | 285.8 | 286.7 | 7.9 | 270 | 6 | Pressure sewer | Cream | 67 | |
| 17468 | 300 | 500 | 16 | 344.9 | 346 | 8.5 | 327.4 | 6 | Pressure sewer | Cream | 46 | |
| 17463 | 300 | 500 | 16 | 344.9 | 346 | 8.5 | 327.4 | 6 | Pressure sewer | Cream | 88 | |
| 17229 | 150 | 400 | 12.5 | 177.1 | 177.7 | 4.4 | 167.9 | 6 | Recycled water | Purple | 23 | |
| 17222 | 100 | 500 | 16 | 121.7 | 122.1 | 3 | 115.4 | 6 | Recycled water | Purple | 11 | |
| 17488 | 100 | 450 | 16 | 121.7 | 122.1 | 3.4 | 114.5 | 6 | Recycled water | Purple | 12 | |
| 17227 | 150 | 500 | 16 | 177.1 | 177.7 | 4.4 | 167.9 | 6 | Recycled water | Purple | 23 | |
| 17489 | 150 | 450 | 16 | SN10 | 177.1 | 177.7 | 4.9 | 166.9 | 6 | Recycled water | Purple | 25 |
| 17232 | 200 | 500 | 16 | 231.9 | 232.6 | 5.7 | 220.1 | 6 | Recycled water | Purple | 40 | |
| 17267 | 200 | 450 | 16 | 231.9 | 232.6 | 6.4 | 218.6 | 6 | Recycled water | Purple | 42 | |
| 17245 | 225 | 500 | 16 | 258.9 | 259.7 | 6.4 | 245.6 | 6 | Recycled water | Purple | 50 | |
| 17473 | 250 | 500 | 16 | 285.8 | 286.7 | 7 | 271.4 | 6 | Recycled water | Purple | 60 | |
| 17466 | 300 | 500 | 16 | 344.9 | 346 | 8.5 | 327.4 | 6 | Recycled water | Purple | 88 |
