Contact Vinidex Customer Service for availability of products on this page.

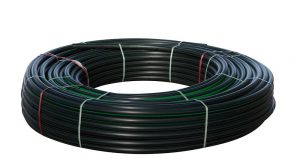

Rural Plus® PE100 Green Stripe PE Pipe
| Vinidex Code | Nominal Size mm x (inch) | Inside Diameter (mm) | Outside Diameter (mm) | Colour | PN | Min. Quantity | Length (m) | Approx. Weight (kg/length) |
| 22577 | 19 (¾) | 19 | 22.4 | Black/Green Stripes | 8 | 1 | 50 | 4.7 |
| 22580 | 19 (¾) | 19 | 22.4 | Black/Green Stripes | 8 | 1 | 200 | 18.8 |
| 22637 | 25 (1) | 25.3 | 28.9 | Black/Green Stripes | 8 | 1 | 50 | 7 |
| 22640 | 25 (1) | 25.3 | 28.9 | Black/Green Stripes | 8 | 1 | 200 | 28.2 |
| 22697 | 32 (1¼) | 31.6 | 36 | Black/Green Stripes | 8 | 1 | 50 | 10.5 |
| 22700 | 32 (1¼) | 31.6 | 36 | Black/Green Stripes | 8 | 2 | 150 | 31.3 |
| 22758 | 40 (1½) | 38 | 43.2 | Black/Green Stripes | 8 | 1 | 50 | 15.2 |
| 22760 | 40 (1½) | 38 | 43.2 | Black/Green Stripes | 8 | 2 | 150 | 45.5 |
| 22780 | 40 (1½) | 38 | 43.2 | Black/Green Stripes | 8 | 2 | 300 | 91 |
| 22828 | 50 (2) | 50.8 | 57.6 | Black/Green Stripes | 8 | 1 | 50 | 26.4 |
| 22830 | 50 (2) | 50.8 | 57.6 | Black/Green Stripes | 8 | 2 | 100 | 54.5 |
| 22840 | 50 (2) | 50.8 | 57.6 | Black/Green Stripes | 8 | 1 | 200 | 109 |
| 22841 | 50 (2) | 50.8 | 57.6 | Black/Green Stripes | 8 | 1 | 500 | 272.4 |
Other Rural Plus® PE Pipe – Green Stripe Products
Product Support
Need some help? View our Product Support area for downloads, installations and jointing procedures.
