Reducers



Contact Vinidex Customer Service for availability of products on this page.

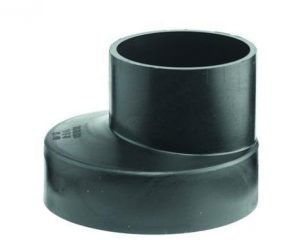

Reducer Eccentric

Vinidex Code Akatherm Code Replaces Nominal Size - Diameter (mm) Carton QTY
53380 160504 50x40 20
53404 165604 56x40 20
53405 165605 56x50 20
53787 160604 63x40 20
53381 160605 53351 63x50 20
53382 160656 53352 63x56 20
53788 160704 53353 75x40 20
53383 160705 75x50 20
53384 160706 70x63 20
53385 160756 75x56 20
53386 160904 90x40 20
53387 160905 53357 90x50 20
53388 160906 90x63 20
53389 160907 90x75 20
53390 160956 90x56 20
53391 161104 110x40 20
53392 161105 53361 110x50 20
53393 161106 53362 110x63 20
53394 161107 110x75 20
53395 161109 53364 110x90 20
53396 161156 53365 110x56 20
53879 161256 125x56 10
53398 161206 125x63 10
53399 161207 53367 125x75 10
53400 161209 53368 125x90 10
53401 161211 53369 125x110 10
53402 161611 53371 160x110 5
53403 161612 53372 160x125 5

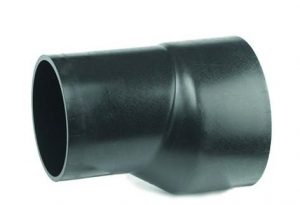

Reducer Eccentric Long

Vinidex Code Akatherm Code Replaces Nominal Size - Diameter (mm) Carton QTY
53342 142011 200x110 5
53343 142012 200x125 5
53344 142016 53373 200x160 5
53345 142520 53375 250x200 5
53346* 143120 53376 315x200 1
53347 143125 53377 315x250 1
*Fabricated

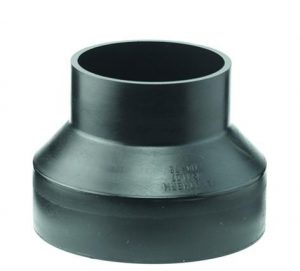

Reducer Concentric

Vinidex Code Akatherm Code Nominal Size - Diameter (mm) Carton QTY
53349 150504 50x40 20
53378 155604 56x40 20
53379 155605 56x50 20
53351 150605 63x50 20
53355 150756 75x56 20
53354 150706 75x63 20
53358 150906 90x63 20
53359 150907 90x75 20
53360 150956 90x56 20
53363 151107 110x75 20
53374 152516 250x160 1
