Contact Vinidex Customer Service for availability of products on this page.

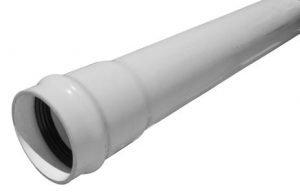

Hydro® PVC-M Series 1 RRJ Pipes
| Vinidex Code | Nominal Size DN (mm) | Pressure Class PN | Type | Approx. Weight (kg per 6m length) |
| 17035 | 100 | 9 | 9 | |
| 17431 | 100 | 9 | Perth only | 9 |
| 17045 | 100 | 12 | 12 | |
| 17427 | 100 | 12 | Perth only | 12 |
| 17080 | 150 | 9 | 19 | |
| 17439 | 150 | 9 | Perth only | 18 |
| 17090 | 150 | 12 | 24 | |
| 17434 | 150 | 12 | Perth only | 24 |
| 17110 | 200 | 9 | 36 | |
| 17446 | 200 | 9 | Perth only | 36 |
| 17120 | 200 | 12 | 47 | |
| 17130 | 225 | 6 | 43 | |
| 17135 | 225 | 9 | 46 | |
| 17140 | 225 | 12 | Perth only | 58 |
| 17145 | 250 | 6 | 50 | |
| 17150 | 250 | 9 | 56 | |
| 17155 | 250 | 12 | 76 | |
| 17160 | 300 | 6 | 62 | |
| 17165 | 300 | 9 | 69 | |
| 17170 | 300 | 12 | 96 | |
| 17175 | 375 | 6 | 99 | |
| 17180 | 375 | 9 | 115 | |
| 17174 | 375 | 12 | 150 | |
| 17171 | 450 | 6 | 155 | |
| 17172 | 450 | 9 | 188 | |
| 17173 | 450 | 12 | 247 | |
| 17415 | 500 | 6 | 201 | |
| 17416 | 500 | 9 | 236 | |
| 17417 | 500 | 12 | 297 | |
| 17418 | 575 | 6 | 245 | |
| 17419 | 575 | 9 | 296 | |
| 17420 | 575 | 12 | 388 |
