- Land development – residential and industrial
- Roads – infrastructure, stormwater, asset renewal
- Rail – stormwater run-off, culverts under rail
- Mining – stormwater and aggressive ground
- Rural – Culverts and heavy rural load applications
Features and benefits
Uncompromising performance
StormFLO is made to stringent Australian Standards (AS/NZS 5065) and has excellent hydraulic performance.
Safe and easy to handle
StormFLO is lighter than concrete pipe, easy to handle, and produces no silica dust when cut.
Durable and lasting
StormFLO has a 100-year design life and is recyclable at the end of life, making it a sustainable solution that stands the test of time.
Includes up to 65% recyclate
Every length of StormFLO pipe contains at least 30%, and up to 65% of post-consumer recyclate that may otherwise go to landfill, making it an environmentally sound choice.
Tested for 100-year design life
Vinidex is the only Australian manufacturer using the UCLS test method to ensure StormFLO meets its 100 year design life requirements, even with the inclusion of recyclate.
Flexible
Unlike concrete pipes that must be capable of fully supporting any applied loading, when StormFLO pipes are subjected to loading, the pipe will initially deflect and take advantage of the lateral pressure provided by the surrounding soil. After initial settlement, there is no further increase in pipe deflection.
Australian made
StormFLO is locally made for all Australian conditions.
Available through Reece stores
StormFLO is available at selected Reece Civil stores. Get the best of both worlds – the industry benchmark in service with the versatility of StormFLO pipes.
Applications
Product Properties
_
Size Range
225-600mm
_
_
_
Material
HDPE
Includes recycled PE
_
Classification
SN8
_
Temperature
The physical properties of Vinidex PE pipes are related to a standard reference temperature of 20°C. For further information please view PE Temperature Influences
_
Chemical
Location
Suitable for use below and above ground (UV stabilised)
Discover the performance capabilities of StormFLO by Vinidex
Did you know?
StormFLO has been approved for use by several road and rail authorities nationally, making it the trusted name in underground stormwater pipe solutions.
To learn more about these approvals contact our Spec team.
How do StormFLO pipes compare against Reinforced Concrete Pipes?
More versatile
Vinidex StormFLO pipes are more versatile than concrete pipes. Under the right conditions, Vinidex SN8 pipe can be used as an alternative to multiple classes of concrete pipes.
Lightweight for fast installation
On average, StormFLO takes less than a quarter of the time to install compared to reinforced concrete pipes (RCP)¹,²
Project Savings
Compared to reinforced concrete pipe, on average choosing StormFLO results in a 31% reduction in the overall installed cost.¹
Flexible and durable
Unlike concrete pipes that must be capable of fully supporting any applied loading, when StormFLO pipes are subjected to loading, the pipe will initially deflect and take advantage of the lateral pressure provided by the surrounding soil. After initial settlement, there is no further increase in pipe deflection.
Smooth and efficient water flow
StormFLO pipes have a smoother internal surface increasing the efficiency of water flow & hydraulic performance by 27%, therefore a reduced pipe diameter may be achievable for StormFLO, resulting in additional project cost savings.³
Products

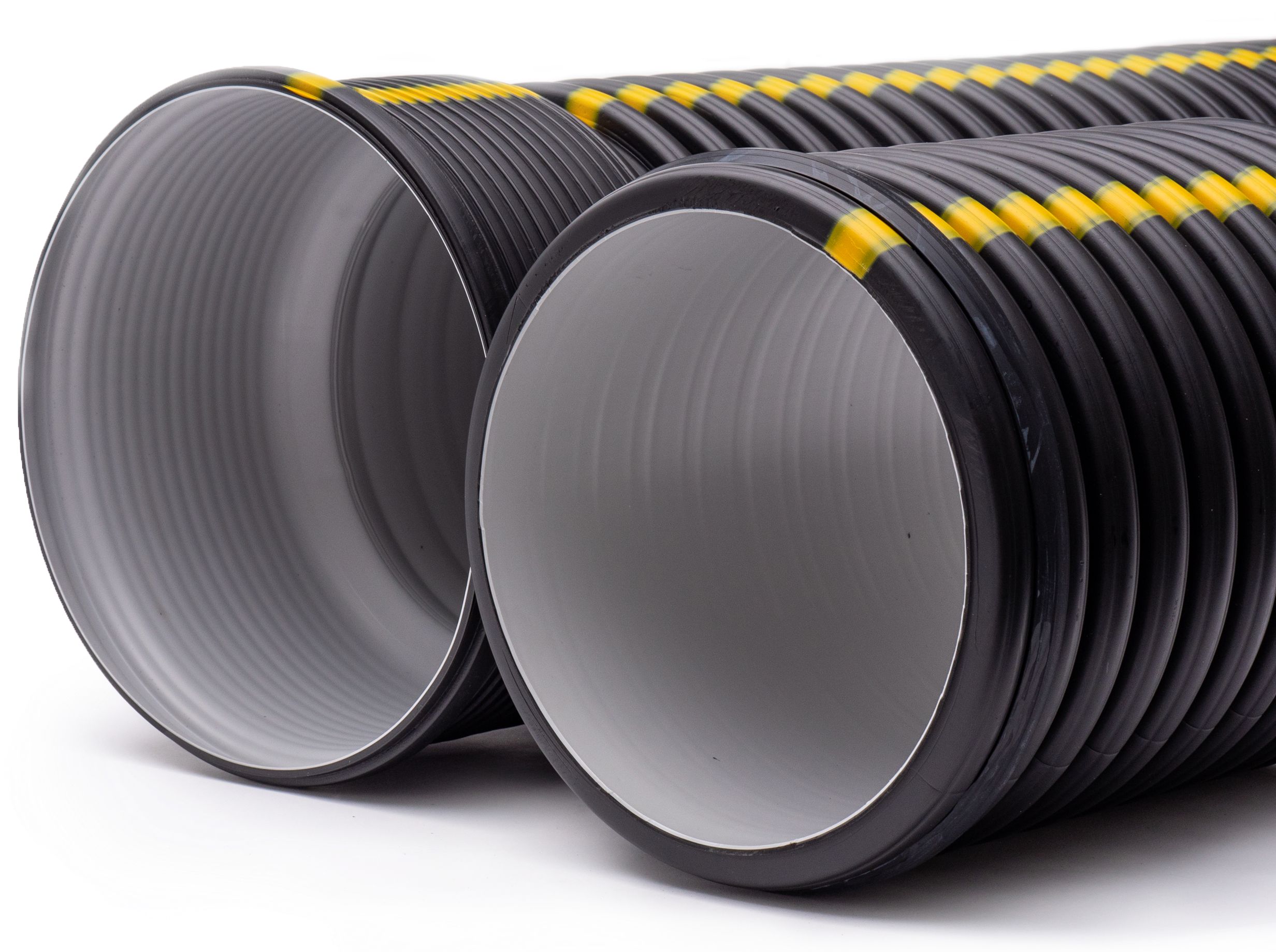

StormFLO® Civil Pipe SN8
FLO 15° Bends
FLO 30° Bends
FLO 45° Bends
FLO 88° Bends
FLO Socket to PVC SWJ Socket
FLO LIT Reducers
FLO Plain couplers
PRO/FLO Transition Couplers
FLO Push on Caps
FLO Rubber Rings
FLO Slip couplers
PRO Grommets to suit FLO
PRO saw to suit FLO range
FLO 45 Junctions – Adaptors to PVC DWV
FLO 90° Tee
FLO 88° Junctions – Adaptor to PVC DWV
Certifications & Approvals
Installation
Technical Datasheet
Product Downloads
1. Based on an independent assessment of the installation requirements for DN300,DN450 and DN600 StormFLO SN8 and Class 2 RCP.
2. This comparison is based on an independent assessment by The Engineering and Design Company Pty Ltd (E&DCo) of the installation of StormFLO SN8 twin wall corrugated PE stormwater pipe and Class 2 RCP. E&DCo relied on the requirements of Australian Standards (AS/NZS 2566.2 “Buried flexible pipelines – Installation” and AS/NZS 3725 “Design for installation of buried concrete pipes”) and their own database of construction costs in preparing this assessment. The following site conditions have been assumed:
– pipes installed in straight, uninterrupted lengths trench geometry to the relevant Australian Standard
– cover height 750mm
– no groundwater or other adverse ground conditions.
– comparison data has been rounded to the nearest whole number where applicable
3. RCP results in 27% more head loss than StormFLO in this example
DN300 SN8 StormFLO – Flow Rate 100L/s
DN300 Class 2 RCP – Flow Rate 100L/S
