Contact Vinidex Customer Service for availability of products on this page.
AquaDUC Fittings

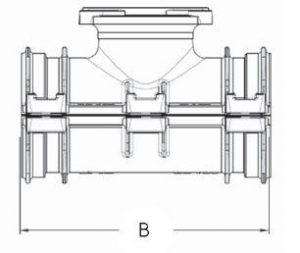

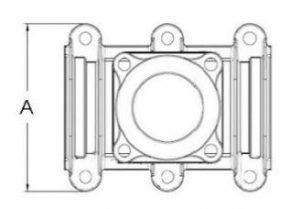

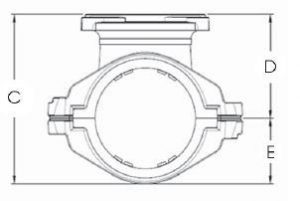

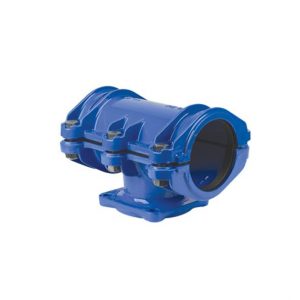

AquaDUC Tees
 |
 |
 |
 |
| Vinidex Code | Nominal Size (mm) - Body | PN Rating | Type | Nominal Size - Branch (mm) | Length - B (mm) | Height - C (mm) |
| 80685 | 125 | PN 16 | PE-FL | 80 | 300 | 212 |
| 80686 | 125 | PN 16 | PE-FL | 100 | 300 | 212 |
| 80687 | 180 | PN 16 | PE-FL | 80 | 300 | 265 |
| 80688 | 180 | PN 16 | PE-FL | 100 | 300 | 265 |
| 80689 | 180 | PN 16 | PE-FL | 150 | 300 | 293 |

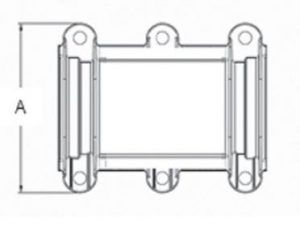

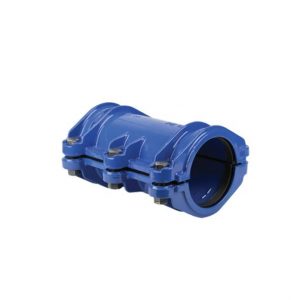

AquaDUC Repair Coupling
 |
 |
 |
 |
| Vinidex Code | Nominal Size - Body (mm) | Nominal Size - Branch (mm) | Length - B (mm) | Height - C (mm) |
| 80683 | 125 | X | 164 | 300 |
| 80684 | 180 | X | 260 | 300 |

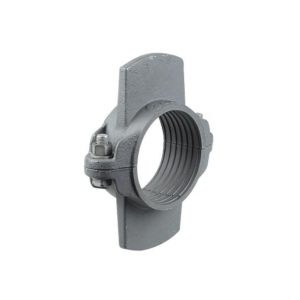

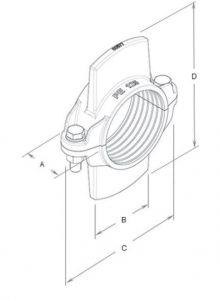

AquaDUC Puddle
 |
 |
| Vinidex Code | Nominal Size - Body (mm) | Nominal Size - Branch (mm) | Height - D (mm) | Width - C (mm) |
| 80677 | 125 | X | 266 | 229 |
| 80678 | 180 | X | 322 | 295 |
| 80679 | 280 | X | 354 | 354 |
