Tapers



Contact Vinidex Customer Service for availability of products on this page.

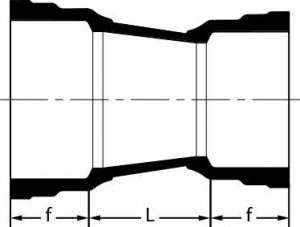

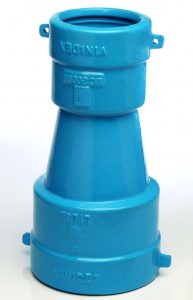

Taper – Socket x Socket Concentric PN35
Vinidex Code Nominal Size DN (mm x mm) - Socket Length (mm)
79741 100 x 80 105
79742 150 x 80 230
79747 150 x 100 170
79756 200 x 100 295
79766 200 x 150 170
79776 225 x 100 365
79786 225 x 150 235
79796 225 x 200 110
79806 250 x 100 425
79816 250 x 150 300
79826 250 x 200 175
79836 250 x 225 115
79844 300 x 100 555
79849 300 x 150 425
79856 300 x 200 300
79866 300 x 225 240
79876 300 x 250 180
78737 375 x 100
78738 375 x 200 495
78740 375 x 225 435
79916 375 x 250 375
81649 375 x 300 245
81636 450 x 100
81658 450 x 200
81659 450 x 225
81642 450 x 250 565
81644 450 x 300 435
78796 450 x 375 250
81660 500 x 250 690
77583 500 x 300 565
77582 500 x 375 380
77737 500 x 450 190
81661 600 x 300 820
81662 600 x 375 635
81663 600 x 450 440
64632 600 x 500 315
81664 750 x 375 1020
81665 750 x 450 830
81668 750 x 500 700
81669 750 x 600 45

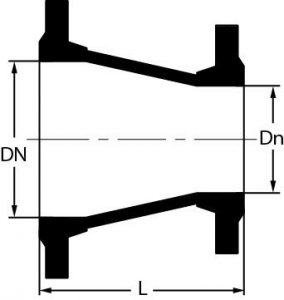

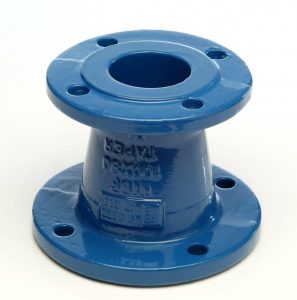

Taper – Flange x Flange Concentric PN16
Vinidex Code Nominal Size DN (mm x mm) - Flange Length (mm)
79735 80 x 50
61878 100 x 50
79736 100 x 80 165
79737 150 x 80 298
78750 150 x 100 235
78751 200 x 100 368
78752 200 x 150 248
78753 225 x 100 432
78755 225 x 150 211
78757 225 x 200 190
78759 250 x 100 495
78761 250 x 150 375
78763 250 x 200 254
78764 250 x 225 190
78766 300 x 100 629
78768 300 x 150 508
78770 300 x 200 387
78772 300 x 225 521
78774 300 x 250 457
78762 375 x 100
78765 375 x 150
78767 375 x 200 584
78741 375 x 225 521
78782 375 x 250 457
78784 375 x 300 337
78785 450 x 100
78789 450 x 150
78790 450 x 225
65624 450 x 250 660
85231 450 x 300 540
78771 450 x 375 356
78786 500 x 250 787
78787 500 x 300 667
64568 500 x 375 483
78788 500 x 450 305
78791 600 x 300 934
78792 600 x 375 749
78027 600 x 450 572
78793 600 x 500 444
78061 750 x 375 1180
78062 750 x 450 1000
64657 750 x 500 885
78063 750 x 600 645

Taper – Spigot x Spigot Concentric

Vinidex Code Nominal Size DN (mm x mm) - Spigot
78742 150 x 100
78743 200 x 100
78744 200 x 150
78739 225 x 200

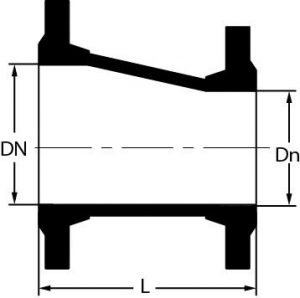

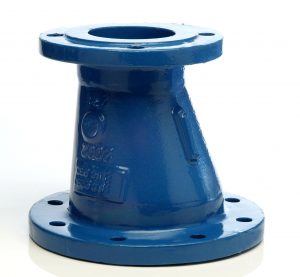

Taper – Flange x Flange Eccentric PN16
Vinidex Code Nominal Size DN (mm x mm) - Flange Length (mm)
78745 100 x 80 165
78746 150 x 80 298
78747 150 x 100 235
78922 200 x 100 368
78749 200 x 150 248
78923 225 x 100 432
78924 225 x 150 211
78925 225 x 200 190
78926 250 x 100 495
64387 250 x 150 375
78927 250 x 200 254
78928 250 x 225 190
85218 300 x 100 629
64423 300 x 150 508
79801 300 x 200 387
78929 300 x 225 521
64799 300 x 250 457
78930 375 x 100
78931 375 x 150
78932 375 x 200 584
78933 375 x 225 521
78936 375 x 250 457
78937 375 x 300 337
78938 450 x 250 660
78794 450 x 300 540
64520 450 x 375 356

Taper – Socket x Flange Concentric PN16

Vinidex Code Nominal Size DN (mm) - Socket Nominal Size DN (mm) - Flange
77654 100 80
77655 150 80
78797 150 100
77656 200 100
77657 200 150
78799 225 100
78801 225 150
78803 225 200
78805 250 100
78807 250 150
78809 250 200
78810 250 225
78813 300 100
78815 300 150
78817 300 200
78819 300 225
78821 300 250
80277 375 300
