Contact Vinidex Customer Service for availability of products on this page.

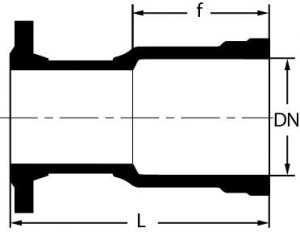

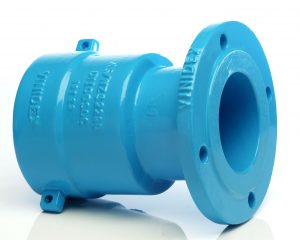

Connector – Flange x Socket PN16

Vinidex Code	Nominal Size DN (mm)	Length (mm)
80095	80
77632	100	157
77633	150	168
80136	200
80146	225	210
80156	250	215
80166	300	170
78835	375	190
78836	450	200
64540	500	215
64587	600	230
78657	750	250

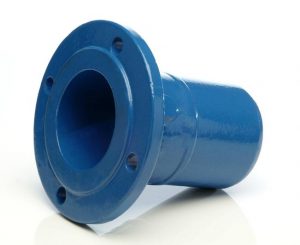

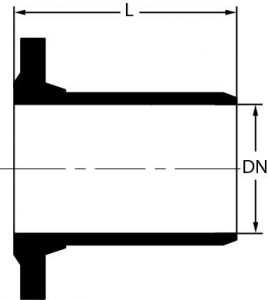

Connector – Flange x Spigot PN16

Vinidex Code	Nominal Size DN (mm)	Length (mm)
78837	80
80109	100	205
80119	150	205
80135	200	230
80149	225	230
80159	250	230
80169	300	255
78838	375	280
78839	450	280
64541	500	305
64588	600	330
61798	750	370

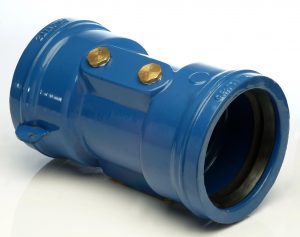

Connector – Pre Taps PN16

Vinidex Code	Nominal Size DN (mm)	No. x Tap	PN
81241	100	2 x 20BSP	16
77649	100	4 x 20BSP	16
81243	100	4 x 25BSP	16
80217	100	1 x 50BSP	16
77650	150	4 X 20BSP	16
81242	150	2 x 20BSP	16
81244	150	4 X 25BSP	16
80227	150	1 x 50BSP	16
80229	200	4 x 20BSP	16
80228	200	1 x 50BSP	16
81253*	150	2 x 20BSP	16
81255*	100	2 x 20BSP	16
* Lilac for recycled water

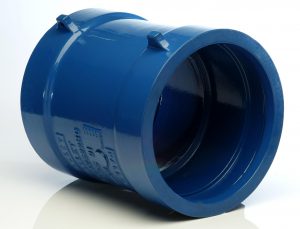

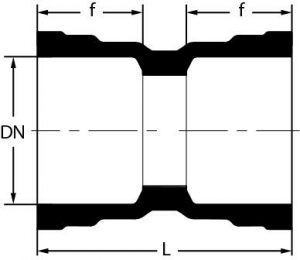

Connector – Socket x Socket PN35

Vinidex Code	Nominal Size DN (mm)
80216	100
80226	150
80256	225
80266	250
80276	300
78833	375
78834	450

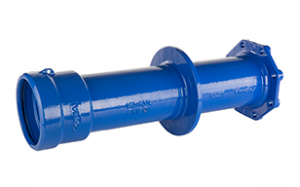

Thrust Connector – Socket x Flange + Weep Flange

Vinidex Code	Nominal Size DN (mm)	Length (mm)
85236	100	600
85237	150	600
85235	225	915
85238	250	915
85239	300	915

Thrust Connector – Flange x Flange + Weep Flange

Vinidex Code	Nominal Size DN (mm)	Length (mm)
85242	225	900
85243	250	900
85244	300	900

Bellmouth Flanged PN16

Vinidex Code	Nominal Size DN (mm)	Length (mm)	Type
61864	100	152	NC
61921	150	152	NC
61922	200	305	NC
61923	225	305	NC
61927	250	380	NC
64418	300	470	NC
61929	375	525	NC
64513	450	590	NC
64563	500	650	NC
61790	600	725	NC
61796	750	845	NC
