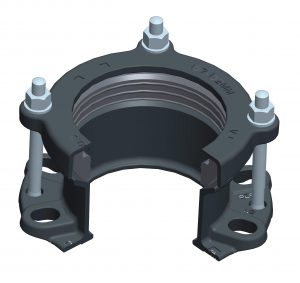

Viking Johnson MaxiDaptor Flange Adaptors have been designed with a multi drilling table to suit PN10, PN16, BS10, AWWA, C207 D, AS4087, AS2129. Flange adaptors are able to compensate a total of 3° angular deflection.

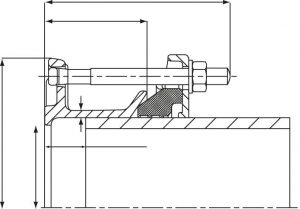

| Vinidex Code - EPDM A1 Fasteners | Vinidex Code - EPDM A4 Fasteners | Nominal Size DN (mm) | Size Range Min (mm) | Size Range Max (mm) | Diameter (mm) | Overall Length (mm) | Bores (mm) | Flange Drilling | Sleeve Length x Thickness (mm x mm) | Setting Gap Min | Setting Gap Max | Bolts (Number - Diameter x Length) | Approx. Weight (kg) |
| 59956 | 59975 | 65 | 63 | 85 | 196.9 | 124 | 75 | AS2129/AS4087 | 75.0 x 4.5 | 20 | 40 | 4-M12 x 125 | 3.5 |
| 59957 | 59976 | 100 | 107 | 132 | 228 | 134 | 121 | AS2129/AS4087 | 75.0 x 4.5 | 20 | 40 | 4-M12 x 125 | 4.4 |
| 59958 | 59977 | 125 | 132 | 158 | 281.5 | 134 | 150 | AS2129/AS4087 | 75.0 x 5.0 | 20 | 40 | 4-M12 x 125 | 5.6 |
| 59959 | 59978 | 150 | 158 | 184 | 281.2 | 134 | 173 | AS2129/AS4087 | 75.0 x 5.0 | 20 | 40 | 4-M12 x 125 | 6 |
| 59960 | 59979 | 175 | 189 | 212 | 336.5 | 133 | 202 | AS2129/AS4087 | 75.0 x 5.0 | 25 | 40 | 4-M12 x 125 | 8.3 |
| 59961 | 59980 | 200 | 218 | 244 | 337.8 | 134 | 225 | AS2129 | 75.0 x 5.0 | 25 | 40 | 4-M12 x 125 | 8.3 |
| 59962 | 59981 | 225 | 243 | 269 | 401.5 | 144 | 252 | AS4087 | 85.0 x 5.0 | 25 | 50 | 6-M12 x 135 | 10.9 |
| 59963 | 250 | 266 | 295 | 402.1 | 146 | 277 | AS4087 | 85.0 x 5.0 | 25 | 50 | 6-M12 x 135 | 11.4 | |
| 59964 | 59983 | 300 | 315 | 349 | 457.8 | 155 | 329 | AS2129 | 100.0 x 5.0 | 25 | 60 | 6-M12 x 145 | 14.8 |
