Viking Johnson MaxiFit Coupling is a universal pipe coupling that is designed to accommodate plain ended pipes with different outside diameters, one fitting is able to connect steel, ductile iron, uPVC, cast iron, GRP, asbestos cement pipes and PE pipes for repairs.
| Vinidex Code - EPDM A1 Fasteners | Vinidex Code - EPDM A4 Fasteners | Nominal Size DN (mm) | Size Range Min (mm) | Size Range Max (mm) | Diameter M (mm) | Overall Length L (mm) | Sleeve A x T Min | Setting Gap Max (mm) | Setting Gap (mm x mm) | Bolts (Number - Diameter x Length) | Approx. Weight (kg) |
| 57518 | 57452 | 40 | 47.9 | 59.5 | 149.5 | 190 | 100.0 x 4.5 | 20 | 40 | 2-M12 x 180 | 3.1 |
| 57519 | 57453 | 50 | 57 | 74 | 154.5 | 190 | 95.0 x 4.5 | 20 | 40 | 4-M12 x 180 | 3 |
| 57520 | 57454* | 65 | 63 | 85 | 173.5 | 190 | 95.0 x 4.5 | 20 | 40 | 3-M12 x 180 | 3.6 |
| 57521 | 57455* | 80 | 85 | 107 | 195.5 | 190 | 95.0 x 4.5 | 20 | 40 | 3-M12 x 180 | 4.1 |
| 57522 | 57456* | 100 | 107 | 132 | 224.5 | 190 | 95.0 x 4.5 | 20 | 40 | 3-M12 x 180 | 5 |
| 57523 | 57457 | 125 | 132 | 158 | 254.5 | 190 | 95.0 x 5.0 | 20 | 40 | 4-M12 x 180 | 6.1 |
| 57524 | 57458 | 150 | 158 | 184 | 280.5 | 190 | 95.0 x 5.0 | 20 | 40 | 4-M12 x 180 | 7 |
| 57525 | 57459 | 175 | 189 | 212 | 306.5 | 230 | 130.0 x 5.0 | 25 | 50 | 4-M12 x 220 | 9.4 |
| 57526 | 57460 | 200 | 218 | 244 | 342.5 | 230 | 130.0 x 5.0 | 25 | 50 | 4-M12 x 220 | 10.9 |
| 57527 | 57461 | 225 | 243 | 269 | 367.5 | 230 | 130.0 x 5.0 | 25 | 50 | 6-M12 x 220 | 12.4 |
| 57528 | 57462 | 250 | 266 | 295 | 399.5 | 230 | 130.0 x 5.0 | 25 | 50 | 6-M12 x 220 | 14.6 |
| 57529 | 57463 | 300 | 315 | 349 | 462.5 | 230 | 130.0 x 5.0 | 25 | 50 | 8-M12 x 222 | 19.4 |

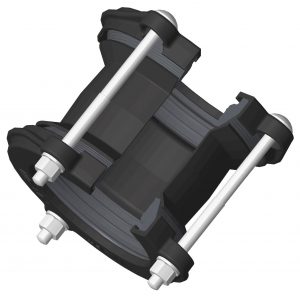

| *MaxiFit Plus Coupling |
