Contact Vinidex Customer Service for availability of products on this page.

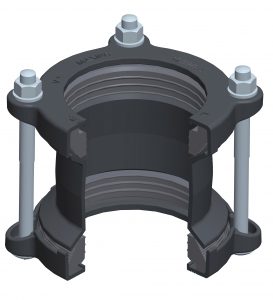

Viking Johnson MaxiStep Reducing Couplings are designed to provide transitions between pipes of different nominal bores simplifying installations when repairing old pipe with new.
| Vinidex Code - EPDM A1 Fasteners | Vinidex Code - EPDM A4 Fasteners | Nominal Size DN (mm) | Size Range Min (Small End) | Size Range Max (Small End) | Large End (mm) | Min | Diameter Ai Max | Diameter B (mm) | Overall Length L (mm) | Sleeve Length S (mm) | Setting Gap Min (mm) | Setting Gap Max (mm) | Bolts (Number - Diameter x Length) | Approx. Weight (kg) |
| 59965 | 59984 | 50/65 | 57 | 74 | 63 | 85 | 154.5 | 173.5 | 210 | 110.0 x 4.5 | 20 | 40 | 4-M12 x 200 | 3.5 |
| 59966 | 59985 | 50/80 | 57 | 74 | 85 | 107 | 154.5 | 195.5 | 210 | 110.0 x 4.5 | 20 | 40 | 4-M12 x 200 | 3.9 |
| 59967 | 59986 | 65/80 | 63 | 85 | 85 | 107 | 173.5 | 195.5 | 210 | 110.0 x 4.5 | 20 | 40 | 4-M12 x 200 | 4.2 |
| 59968 | 59987 | 80/100 | 85 | 107 | 107 | 132 | 195.5 | 224.5 | 210 | 110.0 x 4.5 | 20 | 40 | 4-M12 x 200 | 4.8 |
| 59969 | 59988 | 100/125 | 107 | 132 | 132 | 158 | 224.5 | 254.5 | 220 | 120.0 x 4.5 | 20 | 40 | 4-M12 x 210 | 6.2 |
| 59970 | 59989 | 125/150 | 132 | 158 | 158 | 184 | 254.5 | 280.5 | 220 | 120.0 x 5.0 | 20 | 40 | 4-M12 x 210 | 7.2 |
| 59971 | 59990 | 150/175 | 158 | 184 | 189 | 212 | 280.5 | 306.5 | 230 | 130.0 x 5.0 | 25 | 50 | 4-M12 x 220 | 8.8 |
| 59972 | 59991 | 175/200 | 189 | 212 | 218 | 244 | 306.5 | 342.5 | 230 | 130.0 x 5.0 | 25 | 50 | 4-M12 x 220 | 10.4 |
| 59973 | 59992 | 200/225 | 218 | 244 | 243 | 269 | 342.5 | 367.5 | 230 | 130.0 x 5.0 | 25 | 50 | 6-M12 x 220 | 12.2 |
| 59974 | 225/250 | 243 | 269 | 266 | 295 | 367.5 | 399.5 | 230 | 130.0 x 5.0 | 25 | 50 | 6-M12 x 220 | 13.7 |
Need some help? View our Product Support area for downloads, installations and jointing procedures.
