Contact Vinidex Customer Service for availability of products on this page.

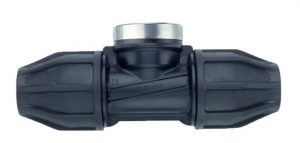

Metric Tees PE x PE x FI BSP
| Vinidex Code | Philmac Code | Nominal Size (mm x mm x inch) | Min. (Bag) Quantity | Carton Quantity |
| 91366 | 97841100 | 16 x 16 x ½ | 10 | 170 |
| 91367 | 97842100 | 20 x 20 x ½ | 10 | 120 |
| 91368 | 97842200 | 20 x 20 x ¾ | 10 | 120 |
| 91369 | 97843100 | 25 x 25 x ½ | 10 | 80 |
| 91370 | 97843200 | 25 x 25 x ¾ | 10 | 70 |
| 91371 | 97843300 | 25 x 25 x 1 | 10 | 70 |
| 91372 | 97844200 | 32 x 32 x ¾ | 5 | 45 |
| 91373 | 97844300 | 32 x 32 x 1 | 5 | 45 |
| 91374 | 97844400 | 32 x 32 x 1¼ | 5 | 40 |
| 92071 | 97845300 | 40 x 40 x 1 | 1 | 25 |
| 91375 | 97845400 | 40 x 40 x 1¼ | 1 | 25 |
| 91376 | 97845500 | 40 x 40 x 1½ | 1 | 23 |
| 91377 | 97846500 | 50 x 50 x 1½ | 1 | 18 |
| 91378 | 97846600 | 50 x 50 x 2 | 1 | 15 |
| 91143 | 97847400 | 63 x 63 x 1¼ | 1 | 9 |
| 91144 | 97847500 | 63 x 63 x 1½ | 1 | 9 |
| 91145 | 97847600 | 63 x 63 x 2 | 1 | 9 |
| 91146 | 97848600 | 75 x 75 x 2 | 1 | 8 |
| 92072 | 97848800 | 75 x 75 x 3 | 1 | 8 |
| 91147 | 97849800 | 90 x 90 x 3 | 1 | 4 |
| 91148 | 97840900 | 110 x 110 x 4 | 1 | 3 |
