Contact Vinidex Customer Service for availability of products on this page.

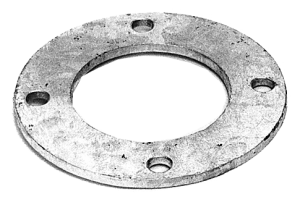

Steel Backing Flanges
AS2129 Table D PN10
| Vinidex Code - Galvanised | Vinidex Code - Stainless Steel | Nominal Size (mm) | Flange Size (mm) |
| *20 | 15 | ||
| *25 | 20 | ||
| *32 | 25 | ||
| *40 | 32 | ||
| 84491 | 83505 | *63 | 50 |
| *75 | 65 | ||
| 83592 | *90 | 80 | |
| 84497 | 83597 | 110 | 100 |
| 84585 | 84530 | 125 | 100 |
| 83499 | 125 | 125 | |
| 84501 | 140 | 125 | |
| 84503 | 83593 | 160 | 150 |
| 84533 | 83594 | 180 | 150 |
| 84505 | 83595 | 200 | 200 |
| 84507 | 83596 | 225 | 200 |
| 84509 | 84532 | 250 | 250 |
| 84511 | 83502 | 280 | 250 |
| 84513 | 84590 | 315 | 300 |
| 84515 | 355 | 350 | |
| 84517 | 83599 | 400 | 400 |
| 84519 | 450 | 450 | |
| 84521 | 83589 | 500 | 500 |
| 84523 | 83604 | 560 | 550 |
| 84525 | 83606 | 630 | 600 |
| 84527 | 710 | 700 | |
| 800 | 800 | ||
| 900 | 900 | ||
| 84531 | 84538 | 1000 | 1000 |
| *Please refer to Table E Flange Prices |
A.N.S.I 150 (A105)
| Vinidex Code - Galvanised | Vinidex Code - Stainless Steel | Nominal Size (mm) | Flange Size (inch) |
| 84563 | 86857 | 63 | 2 |
| 75 | 2½ | ||
| 84565 | 83608 | 90 | 3 |
| 84566 | 83609 | 110 | 4 |
| 84567 | 125 | 5 | |
| 140 | 5 | ||
| 84569 | 84597 | 160 | 6 |
| 84409 | 180 | 6 | |
| 84570 | 83535 | 200 | 8 |
| 84571 | 83538 | 225 | 8 |
| 250 | 10 | ||
| 84573 | 280 | 10 | |
| 84574 | 315 | 12 | |
| 355 | 14 | ||
| 84576 | 400 | 16 | |
| 84577 | 450 | 18 | |
| 500 | 20 | ||
| 630 | 24 |
AS2129 Table E PN16
| Vinidex Code - Galvanised | Vinidex Code - Stainless Steel | Nominal Size (mm) | Flange Size (mm) |
| 20 | 15 | ||
| 84482 | 83464 | 25 | 20 |
| 84484 | 32 | 25 | |
| 84486 | 83465 | 40 | 32 |
| 84488 | 83479 | 50 | 40 |
| 84490 | 83478 | 63 | 50 |
| 84492 | 75 | 65 | |
| 84494 | 90 | 80 | |
| 84496 | 83477 | 110 | 100 |
| 85586 | 125 | 100 | |
| 84498 | 83473 | 125 | 125 |
| 140 | 125 | ||
| 84502 | 160 | 150 | |
| 84596 | 83481 | 180 | 150 |
| 84504 | 200 | 200 | |
| 84506 | 83482 | 225 | 200 |
| 84508 | 250 | 250 | |
| 84510 | 83483 | 280 | 250 |
| 84512 | 83476 | 315 | 300 |
| 84514 | 83475 | 355 | 350 |
| 84516 | 83509 | 400 | 400 |
| 84518 | 450 | 450 | |
| 84520 | 500 | 500 | |
| 84522 | 560 | 550 | |
| 84524 | 630 | 600 | |
| 84526 | 710 | 700 | |
| 800 | 800 | ||
| 65417 | 900 | 900 | |
| 1000 | 1000 |
AS4087 Figure B7 PN16
| Vinidex Code - Galvanised | Vinidex Code - Stainless Steel | Nominal Size (mm) | Flange Size (mm) |
| 63 | 50 | ||
| 75 | 65 | ||
| 84476 | 84474 | 90 | 80 |
| 84477 | 83516 | 110 | 100 |
| 83507 | 125 | 100 | |
| 83517 | 160 | 150 | |
| 83508 | 180 | 150 | |
| 84478 | 84475 | 200 | 200 |
| 83506 | 225 | 225 | |
| 84536 | 250 | 250 | |
| 84479 | 315 | 300 | |
| 355 | 350 |
