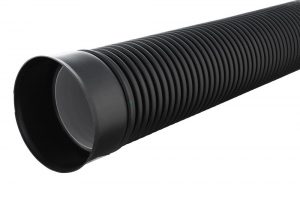

StormPRO® Pipe



Contact Vinidex Customer Service for availability of products on this page.



Vinidex Code Nominal Size (mm) Effective Length (m) Approx. Weight (kg/length) Crate Quantity Semi Truck Load B-Double Truck Load
6m Range
29456 225 5.99 18.9 12 144 216
29458 300 5.94 31.2 6 72 108
29460 375 5.93 48.0 4 or 6 60 90
29471 450 5.95 72.1 2 40 60
29473 525 5.89 93.5 2 32 48
29475 600 5.85 120.5 3 18 27
29418 750 5.92 187.5 2 12 18
29419 900 5.91 256.7 2 8 12
3m Range - call for availability
29485 225 2.92 10.0 12 288 432
29406 300 2.88 15.5 6 144 216
29407 375 2.87 24.0 4 or 6 120 180
29482 450 2.86 36.9 2 80 120
29453 525 2.80 46.2 2 64 96
29484 600 2.76 59.7 3 36 54
29454 750 2.82 92.8 2 24 36
29405 900 2.81 135.7 2 16 24
