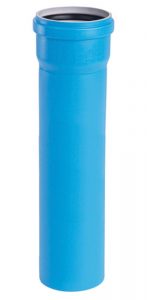

Pipe with Socket



Contact Vinidex Customer Service for availability of products on this page.

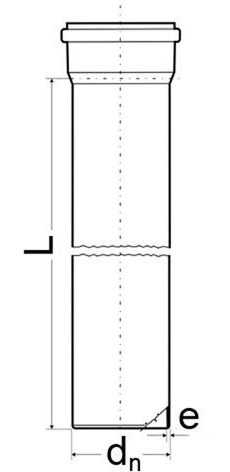

Vinidex Code Akatherm Code Nominal Size - Diameter (mm) Nominal Size - Length (mm)
67210* PPA-040-018-025-D 40 250
67211* PPA-040-018-050-D 40 500
67212 PPA-040-018-100-A 40 1000
67215 PPA-040-018-300-A 40 3000
67216* PPA-050-018-015-D 50 150
67217 PPA-050-018-025-D 50 250
67218 PPA-050-018-050-D 50 500
67219 PPA-050-018-100-A 50 1000
67220* PPA-050-018-150-A 50 1500
67221* PPA-050-018-200-A 50 2000
67222 PPA-050-018-300-A 50 3000
67224 PPA-075-023-025-D 75 250
67225* PPA-075-023-050-D 75 500
67226 PPA-075-023-100-A 75 1000
67227* PPA-075-023-150-A 75 1500
67228* PPA-075-023-200-A 75 2000
67229 PPA-075-023-300-A 75 3000
67237* PPA-110-034-015-D 110 150
67238 PPA-110-034-025-D 110 250
67239 PPA-110-034-050-D 110 500
67240 PPA-110-034-100-A 110 1000
67241* PPA-110-034-150-A 110 1500
67242 PPA-110-034-200-A 110 2000
67243 PPA-110-034-300-A 110 3000
67253* PPA-160-049-050-A 160 500
67254 PPA-160-049-100-A 160 1000
67256* PPA-160-049-200-A 160 2000
67257 PPA-160-049-300-A 160 3000
*Longer lead-times apply
