Scraper Tools – FWSG Ranges



Contact Vinidex Customer Service for availability of products on this page.

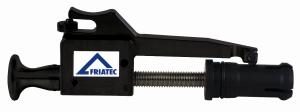

FWSG RA – Compact Scraper Tool for Pipes and Outlets (d25 – d63)

  • Dimension-bound compact scraper tool for the reliable removal of the oxide layer of HD-PE and PE-Xa pipes and at the outlets of FRIALEN safety fittings (see product range FRIALEN).
  • Super long scraping length, in the diameter d 32 also for FRIALONG long couplers.
  • Scraper blade made of carbide with 2 edges (twice the service life).
  • Automatic compensation of pipe out-of-roundness and tolerances. Manual operation, with hand crank or cordless screwdriver.
Vinidex Code Friatools Code Nominal Dimension SDR Description
89253 613576 d 25 SDR 7.4 / SDR 11 Compact Scraper 25 SDR 7.4 / 11
89254 613580 d 32 SDR 11 Compact Scraper 32 SDR11
89255 613581 d 40 SDR 11 Compact Scraper 40 SDR11
89256 613582 d 50 SDR 11 Compact Scraper 50 SDR11
89257 613583 d 63 SDR 11 Compact Scraper 63 SDR11
89280 613579 all dimensions 160-110 Branch Saddle EF SDR11

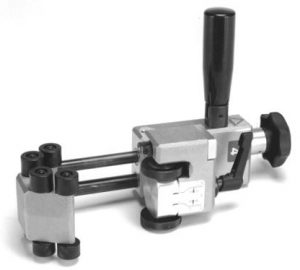

FWSG 63 – Scraper Tool for Pipes (d20 – d63)

  • For the reliable removal of the oxide layer of HD-PE and PE-Xa pipes.
  • Scraper blade made of carbide for a long life.
  • Even swarf removal thanks to a spring-loaded scraper blade and automatic feed. Inclusive of a replacement scraper blade.
  • The tool is delivered in a handy aluminium transport box.
Vinidex Code Friatools Code Description
89173 613305 Rotational Scraper 20-63mm

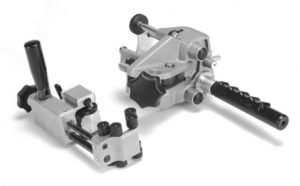

FWSG 63/225 – Scraper Tool Set for Pipes (d20 – d225)

  • For the reliable removal of the oxide layer of HD-PE and PE-Xa pipes.
  • Scraper blade made of carbide for a long life.
  • Even swarf removal thanks to a spring-loaded scraper blade and automatic feed.
  • Inclusive of a replacement scraper blade for each tool and FRIATEC maintenance spray.
  • The tools are delivered in a handy aluminium transport box.
Vinidex Code Friatools Code Description
89259 613316 Rot. Scraper Set 20-63 & 75-225

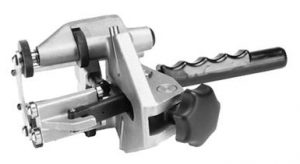

FWSG 225 – Scraper Tool for Pipes (d75 – d225)

  • For the reliable removal of the oxide layer of HD-PE and PE-Xa pipes.
  • Scraper blade made of carbide for a long life.
  • Even swarf removal thanks to a spring-loaded scraper blade and automatic feed.
  • Inclusive of a replacement scraper blade and FRIATEC maintenance spray.
  • The tool is delivered in a handy aluminium transport box.
Vinidex Code Friatools Code Description
89258 613311 Rotational Scraper 75 - 225

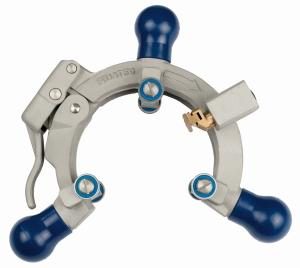

FWSG SE – Scraper Tool for Pipe Ends and Saddle Areas (d63 – d315)

  • Dimension-bound compact scraper tool for the reliable removal of the oxide layer of HD-PE and PE-Xa pipe ends and in the saddle area
  • Scraper blade designed as turning blade with 2 blades (twice the service life).
  • Easy clamping thanks to the open design of the scraper tool.
  • The tool is delivered in a handy aluminium transport box.
Vinidex Code Friatools Code Nominal Dimension Description
89175 613562 d 63 Rotation Scraper 63 saddle & end
89176 613563 d 75 Rotation Scraper 75 saddle & end
89177 613564 d 90 Rotation Scraper 90 saddle & end
89178 613565 d 110 Rotation Scraper 110 saddle & end
89179 613566 d 125 Rotation Scraper 125 saddle & end
89180 613567 d 140 Rotation Scraper 140 saddle & end
89181 613568 d 160 Rotation Scraper 160 saddle & end
89182 613569 d 180 Rotation Scraper 180 saddle & end
89183 613570 d 200 Rotation Scraper 200 saddle & end
89184 613571 d 225 Rotation Scraper 225 saddle & end
89185 613572 d 250 Rotation Scraper 250 saddle & end
89186 613573 d 280 Rotation Scraper 280 saddle & end
89187 613574 d 315 Rotation Scraper 315 saddle & end

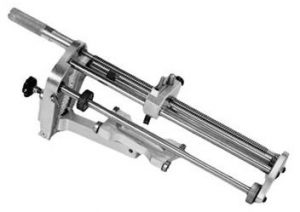

FWSG 710L – Scraper Tool for Pipes (d250 – d710)

  • For the reliable removal of the oxide layer of HD-PE and PE-Xa pipes for half or entire coupler length.
  • Scraper blade made of carbide for a long life. Even swarf removal thanks to a spring-loaded scraper blade and automatic feed.
  • Inclusive of a replacement scraper blade and FRIATEC maintenance spray.
  • The tool is delivered in a handy aluminium transport box.
Vinidex Code Friatools Code Description
89174 613642 Rotational Scraper 250-710 L

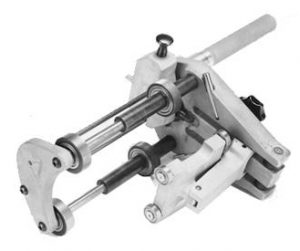

FWSG 710 S – Scraper Tool for Pipes and Spigot Fittings (d250 – d710)

  • For the reliable removal of the oxide layer on spigot fittings.
  • Additionally it is also possible to scrape HD-PE and PE-Xa-pipes (maximum along half length of couplers d 710).
  • Scraper blade made of carbide for a long life.
  • Even swarf removal thanks to a spring-loaded scraper blade and automatic feed.
  • Includes replacement blade and FRIATEC maintenance spray.
  • The tool is delivered in a handy aluminium transport box.
Vinidex Code Friatools Code Description
89260 613639 Rotational Scraper 250-710 S

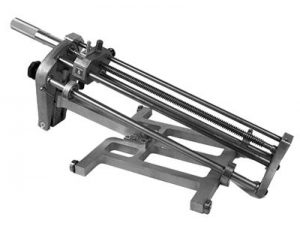

FWSG 900L – Scraper Tool for Pipes (d630 – d900)

  • For the reliable removal of the oxide layer of HD-PE pipes for half or entire coupler length.
  • Scraper blade made of carbide for a long life.
  • Even swarf removal thanks to a spring-loaded scraper blade and automatic feed.
  • Inclusive of a replacement scraper blade for each tool and FRIATEC maintenance spray.
  • The tool is delivered in a handy aluminium transport box.
Vinidex Code Friatools Code Description
89281 613644 630-900 Rotational Scraper

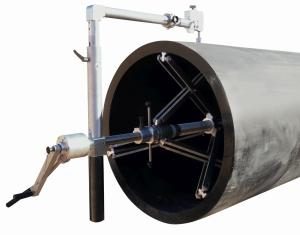

FWSG XL – Large Pipe Scraper Tool for Pipes (d800 – d1200)

  • For the reliable removal of the oxide layer of large pipes made of HD-PE in the diameter range d 800 to d 1200, SDR11-SDR33.
  • Modular design for easy handling and quick assembly.
  • Diameter adjustment through quick setting.
  • Centre-supported drive via hand crank.
  • Automatic compensation of pipe out-of-roundness and tolerances through spring-supported adjustable blade unit.
  • Scraper blade designed as turning blade with 2 cutting edges (twice the service life).
Vinidex Code Friatools Code Description
89251 613645 XL Scraper 800-1200
