Contact Vinidex Customer Service for availability of products on this page.

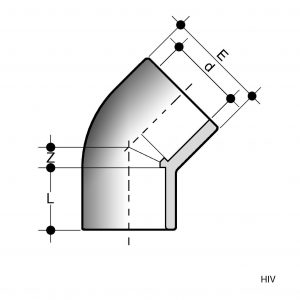

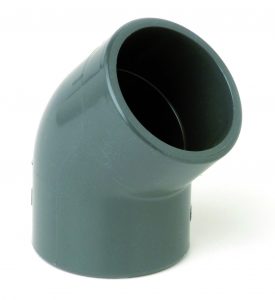

CAT 10 45° Elbows – SCJ
| Vinidex Code | Nominal Size (mm) | PN | d (mm) | L (mm) | Z (mm) | E (mm) | Approx. Weight (kg) |
| 30388 | 200 | 10 | 225 | 121 | 55 | 260 | 4.9 |
| 30389 | 225 | 10 | 250 | 131 | 58 | 286 | 7.15 |
| 30390 | 250 | 10 | 280 | 146 | 62 | 320 | 10.8 |
| 30391 | 300 | 8 | 315 | 164 | 66 | 359 | 14.9 |
| 30392 | 375 | 5 | 400 | 206 | 83 | 439 | 23.9 |
