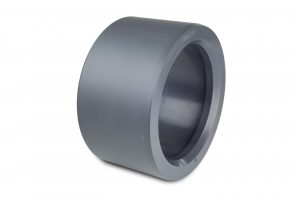

CAT 5 Reducing Bushes – SCJ

Contact Vinidex Customer Service for availability of products on this page.

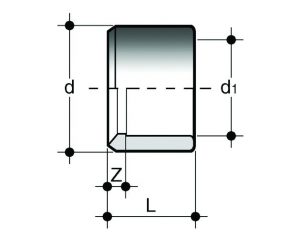

Vinidex Code	Nominal Size (mm)	PN	d (mm)	d1 (mm)	L (mm)	Z (mm)	Approx. Weight (kg)
34580	200-150	16	225	160	119	33
30409	225-150	10	250	160	132	45	1.7
30410	225-200	10	250	225	132	12	1.7
30411	250-200	10	280	225	147	27	4.3
30412	250-255	4	280	250	147	15	2.5
30414	300-200	10	315	225	165	45	5.5
30415	300-225	10	315	250	165	33	6.3
30416	300-250	10	315	280	165	18	3.55
30417	300-150	10	315	160			2.05
30418	375-250	5	400	250			9.2
30419	375-300	5	400	315	206	42	13.1
