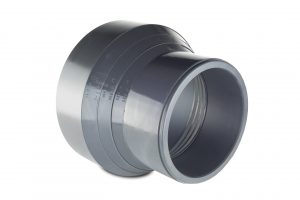

CAT 8 Reducing Couplings – SCJ

Contact Vinidex Customer Service for availability of products on this page.

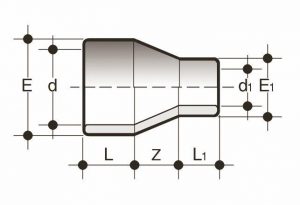

Vinidex Code	Nominal Size (mm)	PN	d (mm)	D1 (mm)	L (mm)	L1 (mm)	Z (mm)	E (mm)	E1 (mm)	Approx. Weight (kg)
30327	200-150	4	225	160	103	86	57	258	190	2.2
30425	225-200	4	250	225	105	103	22	283	258	4.5
30426	250-200	4	280	225	101	103	47	317	258	7
30427	250-225	4	280	250	101	105	26	317	283	7
30355	300-150	4	315	160	105	86	135	355	190	10.5
30428	300-200	4	315	225	105	103	79	355	258	10.5
30429	300-225	4	315	250	105	105	57	355	283	10.5
30430	300-250	4	315	280	105	101	31	355	317	10.5
30431	375-300	4	400	315	105	105	40	435	355	12
