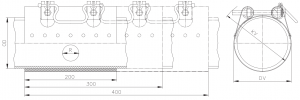

Pipe OD (mm) | Clamping Range (mm) | PN Bar | Vinidex Code NBR | 2 Lock Bolts (mm) | Vinidex Code NBR | 3 Lock Bolts (mm) | Vinidex Code NBR | 4 Lock Bolts (mm) |
44 | 44 - 48 | 16 | 76517 | 200 | 300 | |||
48 | 48 - 52 | 16 | 76518 | 200 | 300 | |||
54 | 54 - 58 | 16 | 76519 | 200 | 300 | |||
60 | 60 - 67 | 16 | 76520 | 200 | 300 | |||
67 | 67 - 74 | 16 | 200 | 300 | ||||
70 | 70 - 77 | 16 | 76521 | 200 | 300 | |||
75 | 75 - 83 | 16 | 76522 | 200 | 300 | |||
82 | 82 - 89 | 16 | 76523 | 200 | 300 | 400 | ||
87 | 87 - 95 | 16 | 76524 | 200 | 300 | 400 | ||
88 | 88 - 98 | 16 | 200 | 300 | 400 | |||
95 | 95 - 104 | 16 | 76525 | 200 | 300 | 400 | ||
108 | 108 - 118 | 16 | 76526 | 200 | 300 | 400 | ||
113 | 113 - 123 | 16 | 76527 | 200 | 300 | 400 | ||
118 | 118 - 128 | 16 | 200 | 300 | 400 | |||
120 | 120 - 131 | 16 | 76528 | 200 | 300 | 400 | ||
132 | 132 - 142 | 16 | 76529 | 200 | 300 | 400 | ||
135 | 135 - 145 | 16 | 200 | 300 | 400 | |||
139 | 139 - 149 | 16 | 200 | 300 | 400 | |||
145 | 145 - 155 | 16 | 76530 | 200 | 300 | 400 | ||
159 | 159 - 170 | 16 | 76531 | 200 | 76538 | 300 | 400 | |
167 | 167 - 178 | 16 | 76532 | 200 | 300 | 400 | ||
176 | 176 - 187 | 16 | 76533 | 200 | 300 | 400 | ||
193 | 193 - 203 | 10 | 76534 | 200 | 76539 | 300 | 400 | |
215 | 215 - 225 | 10 | 76535 | 200 | 76540 | 300 | 400 | |
228 | 228 - 239 | 10 | 76536 | 200 | 76541 | 300 | ||
240 | 240 - 250 | 10 | 200 | 300 | ||||
261 | 261 - 271 | 10 | 200 | 76542 | 300 | |||
269 | 269 - 280 | 10 | 76537 | 200 | 76543 | 300 | ||
280 | 280 - 291 | 10 | 76544 | 300 | ||||
315 | 315 - 325 | 10 | 76545 | 300 | ||||
320 | 320 - 330 | 10 | 76546 | 300 |

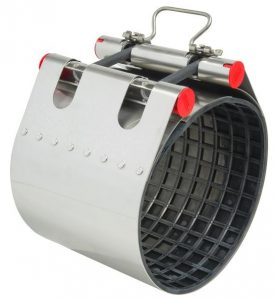

EPDM sealing sleeve clamps are available on request.
Follow fitting/disassembly instructions.
Different pipe diameters (transition) are not possible.
Test pressure = PN x 1.5.
Radial length of damaged area max. 20% of pipe outside diameters.
The repair clamp must be centered over the damaged area.
Working pressure for gas: max. 5 bar.
