Straub Grip L 21.3 – 219.1 mm

Contact Vinidex Customer Service for availability of products on this page.

Component/Material W4
Casing AISI 304
Bolts A4 – 80
Bars AISI 304
Anchoring Rings AISI 301
Strip Insert AISI 316 L / HDPE

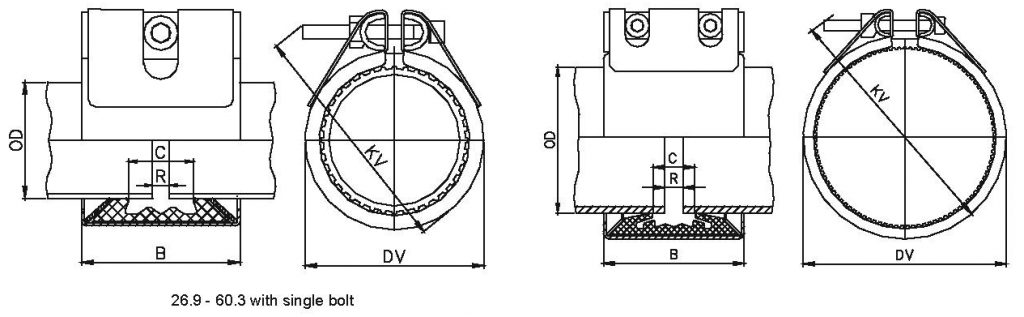

Vinidex Code - EPDM Vinidex Code - NBR Pipe OD (mm) Clamping Range (mm) PS Bar B (mm) C (mm) DV (mm) KV (mm) Pipe Gap with Strip Insert (mm) Torque rate Nm Allen Head (mm)
76041 76098 21.3 20.8 - 21.8 36 45 18 43 70 5 10 9
76042 76099 26.9 26.4 - 27.4 46 46 19 43 70 5 5 5
76043 76100 30 29.5 - 30.5 42 46 17 47 75 5 5 5
76044 76101 33.7 33.2 - 34.2 38 46 17 51 75 5 5 5
76045 76102 38 37.5 - 38.5 33 61 25 57 90 5 to 10 7.5 6
76046 76103 42.4 41.9 - 42.9 30 61 25 62 95 5 to 10 7.5 6
76047 76104 44.5 44.0 - 45.0 33 61 25 64 95 5 to 10 7.5 6
76048 76105 48.3 47.8 - 48.8 30 61 25 67 100 5 to 10 7.5 6
76049 76106 50.8 50.2 - 51.4 20 76 36 76 105 5 to 10 7.5 6
76050 76107 54 53.5 - 54.5 20 76 37 76 105 5 to 15 7.5 6
76051 76108 57 56.4 - 57.6 18 76 37 76 105 5 to 15 10 6
76052 76109 60.3 59.7 - 60.9 22 76 37 79 110 5 to 15 7.5 6
76053 76110 63.5 62.9 - 64.1 37 77 32 84 114 5 to 25 35 8
76054 66.6 64.9 - 67.3 34 95 35 87 126 5 to 20 10 6
76055 76111 70 68.9 - 70.7 32 95 36 92 131 5 to 20 10 6
76056 76112 73 72.3 - 73.7 31 95 41 96 142 5 to 25 12 6
76057 76113 76.1 75.3 - 76.9 31 95 41 98 142 5 to 25 12 6
76058 79.5 78.7 - 80.3 28 95 35 100 142 5 to 25 12 6
76059 76114 84 83.2 - 84.8 26 95 35 112 152 5 to 25 12 6
76060 76115 88.9 88.0 - 89.8 22 95 41 111 157 5 to 25 12 6
76061 76116 100.6 99.6 - 101.6 22 95 35 129 172 5 to 25 12 6
76062 76117 101.6 100.6 - 102.6 22 95 35 130 172 5 to 25 15 6
76063 76118 104 103.0 - 105.0 22 95 35 132 172 5 to 25 12 6
76064 76119 104.8 103.8 - 105.8 22 95 35 133 172 5 to 25 12 6
76065 76120 108 106.9 - 109.1 21 95 41 130 172 5 to 25 12 6
76066 76121 114.3 113.2 - 115.4 16 95 41 136 177 5 to 25 12 6
76067 76122 127 125.7 - 128.3 19 110 54 151 195 5 to 30 20 8
76068 76123 129 127.7 - 130.3 19 110 54 153 195 5 to 30 20 8
76069 76124 130.2 128.9 - 131.5 19 110 54 154 200 5 to 30 20 8
76070 76125 133 131.7 - 134.3 19 110 54 157 200 5 to 30 20 8
76071 76126 139.7 138.3 - 141.1 16 110 54 164 210 5 to 30 20 8
76072 76127 141.3 139.9 - 142.7 16 110 54 166 210 5 to 30 20 8
76073 76128 154 152.5 - 155.5 16 110 54 184 225 5 to 30 20 8
76074 76129 159 157.4 - 160.6 16 110 54 183 225 5 to 30 20 8
76075 76130 168.3 166.6 - 170.0 16 110 54 192 230 5 to 30 20 8
76080 76135 219.1 216.9 - 221.3 16 142 80 250 295 5 to 30 60 10

Follow fitting/disassembly instructions.
PS = Working pressure considering the application loads.
Test pressure = PS x 1.5 (for example industry, water supply etc.).
The pressure values are valid on radial rigid carbon steel pipes under static loads.
Refer to the technical manual for minimum wall thickness of pipe.
Strip inserts are supplied with all couplings sold in Australia.
