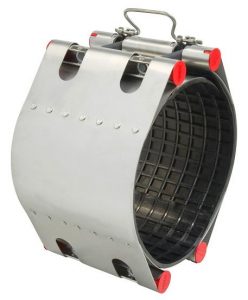

Straub Clamp SCZ 88 – 440 mm



Contact Vinidex Customer Service for availability of products on this page.
Components Materials
Casing AISI 304
Bolts A2-70
Bars AISI 304

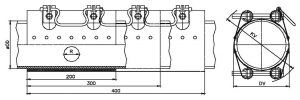

Clamp Length Rmax
200 mm 50 mm
300 mm 150 mm
400 mm 250 mm
Pipe OD (mm) Clamping Range (mm) PN Bar Vinidex Code NBR 2 Lock Bolts (mm) Vinidex Code NBR 3 Lock Bolts (mm) Vinidex Code NBR 4 Lock Bolts (mm)
88 88 - 110 16 200 300 400
100 100 - 120 16 200 300 400
108 108 - 128 16 200 300 400
114 114 - 134 16 200 300 400
120 120 - 140 16 200 300 400
130 130 - 150 16 200 300 400
140 140 - 160 16 200 300 400
159 159 - 180 16 200 300 400
168 168 - 189 16 200 300 400
190 190 - 210 16 200 300 400
210 210 - 230 10 200 300 400
218 218 - 238 10 200 300 400
240 240 - 260 10 200 300 400
269 269 - 289 10 200 300 400
282 282 - 302 10 200 300 400
315 315 - 335 10 200 300 76548 400
322 322 - 344 10 300 400
337 337 - 358 6 76547 300 76549 400
347 347 - 367 6 300 400
365 365 - 385 5 76550 400
390 390 - 410 5 76551 400
410 410 - 430 5 400
420 420 - 440 5 76552 400

EPDM sealing sleeve clamps are available on request.
Follow fitting/disassembly instructions.
Different pipe diameters (transition) are not possible.
Test pressure = PN x 1.5.
Radial length of damaged area max. 20% of pipe outside diameters.
The repair clamp must be centered over the damaged area.
Working pressure for gas: max. 5 bar.
