Contact Vinidex Customer Service for availability of products on this page.
Adaptors

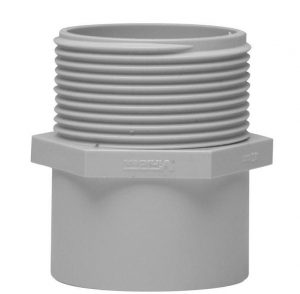

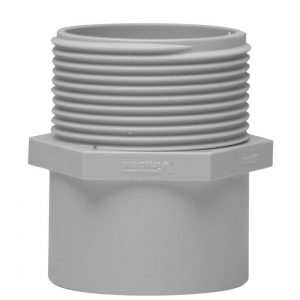

Iron Connectors – Male
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Approx. Weight (kg) | Min. (Bag) Quantity | Carton Quantity |
| 56550 | 40 | 27 | 31.8 | 58.7 | 0.04 | 10 | 60 |
| 56560 | 50 | 30 | 31.8 | 62 | 0.05 | 10 | 150 |

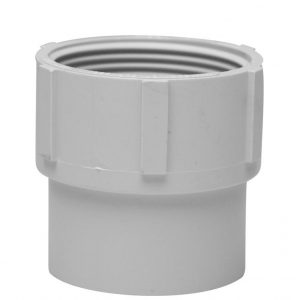

Iron Connectors – Female
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Approx. Weight (kg) | Min. (Bag) Quantity | Carton Quantity |
| 56650 | 40 | 27 | 27 | 52 | 0.04 | 5 | 60 |
| 56660 | 50 | 30 | 29.5 | 59.5 | 0.06 | 10 | 120 |
Iron Adaptors – Male
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Approx. Weight (kg) | Min. (Bag) Quantity | Carton Quantity |
| 56610 | 40 | 27 | 32 | 59 | 0.04 | 10 | 120 |
| 56620 | 50 | 30 | 32 | 62 | 0.05 | 10 | 80 |

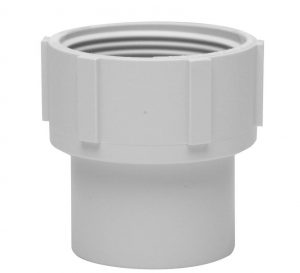

Iron Adaptors – Female
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Min. (Bag) Quantity | Carton Quantity |
| 56690 | 40 | 27 | 29 | 56 | 10 | 140 |
| 56700 | 50 | 30 | 29.5 | 60.5 | 10 | 80 |

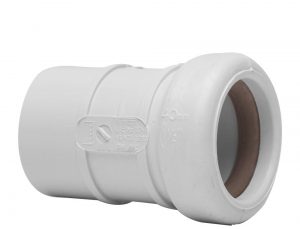

PVC to Copper Joiners
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Approx. Weight (kg) | Min. (Bag) Quantity | Carton Quantity |
| 57300 | 40 | 27 | 84.5 | 0.09 | 5 | 140 |
| 57310 | 50 | 30 | 78.3 | 0.12 | 5 | 50 |
| 57320 | 65 | 38 | 97 | 0.01 | 5 | 60 |
| 57340 | 100 | 50 | 125.8 | 0.37 | 3 | 24 |

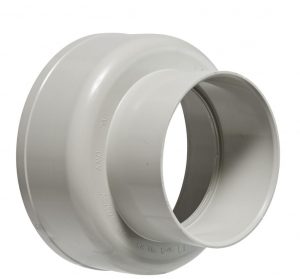

Vitrified Clay Spigot Adaptors
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Min. (Bag) Quantity | Carton Quantity |
| 46630 | 100 | 50 | 61 | 169 | 10 | 20 |
| 47350 | 150 | 76 | 68 | 232 | 1 | 10 |
| 47460 | 225 | 140 | 75 | 325 | 1 | 5 |
| 46631 | 300 | 100 | 61 | 171 | 1 |

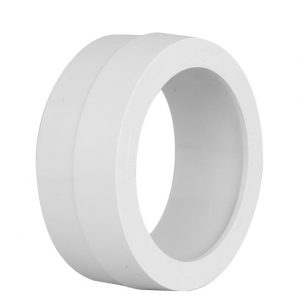

Vitrified Clay Bushes
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | Min. (Bag) Quantity | Carton Quantity |
| 46640 | 100 | 54.5 | 139 | 10 | 20 |
| 47370 | 150 | 79.6 | 192 | 1 | 4 |
| 47470 | 225 | 179 | 276.5 | 1 | 4 |
| 48430 | 300 | 1 |
Other Drain Waste & Vent (DWV) Systems Products
Product Support
Need some help? View our Product Support area for downloads, installations and jointing procedures.
