SCJ Fittings – Junctions

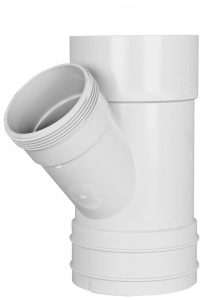

45° Junctions F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 54630 | 40 | 27 | 81 | 127 | 1 | 100 |
| 54650 | 50 | 30 | 102 | 150 | 10 | 40 |
| 54670 | 65 | 38 | 125 | 184 | 5 | 25 |
| 46200 | 100 | 50 | 187 | 260 | 1 | 13 |
| 54760 | 100 x 50 | 50 | 147 | 228.5 | 5 | 15 |
| 46220 | 100 x 65 | 50 | 166.5 | 228 | 1 | 15 |
| 47120 | 150 | 76 | 273 | 412 | 1 | 4 |
| 47110 | 150 x 100 | 76 | 225.5 | 328 | 1 | 5 |
| 50131* | 150 x 100 | 76 | ||||
| 47450 | 225 | 115 | 449 | 586 | 1 | 2 |
| 47680 | 225 | 125 | 752 | 710 | 1 | |
| 47440 | 225 x 100 | 115 | 286 | 480 | 1 | 4 |
| 47445 | 225 x 150 | 115 | 355 | 480 | 1 | 3 |
| 47670 | 225 x 150 | 125 | 392 | 620 | 1 | |
| 48090 | 300 | 175 | 670 | 1030 | 1 | |
| 48095 | 300 | 150 | 1 | |||
| 48060 | 300 x 100 | 175 | 398 | 670 | 1 | |
| 48095 | 300 | 175 | 1 | |||
| 48070 | 300 x 150 | 175 | 468 | 770 | 1 | |
| 48080 | 300 x 225 | 175 | 600 | 930 | 1 | |
| 48520 | 375 x 100 | 200 | 470 | 775 | 1 | |
| 48530 | 375 x 150 | 200 | 521 | 845 | 1 | |
| 48550 | 375 x 300 | 200 | 731 | 1060 | 1 | |
| *SN8 |

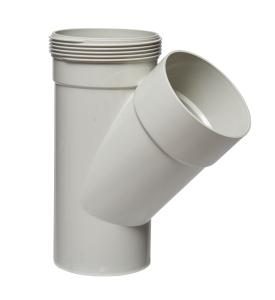

45° Junctions M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 46250 | 100 | 50 | 187 | 260 | 1 | 13 |
| 47150 | 150 x 100 | 76 | 225.5 | 328 | 1 | 5 |

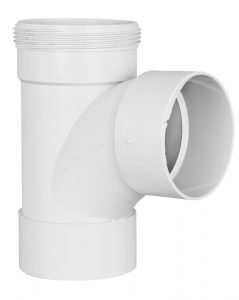

88° Junctions F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 54640 | 40 | 27 | 60.4 | 109 | 10 | 50 |
| 54660 | 50 | 206 | 44 | 133 | 10 | 40 |
| 54680 | 65 | 38 | 115 | 172.5 | 5 | 25 |
| 46300 | 100 | 50 | 133 | 235 | 1 | 14 |
| 47205 | 150 | 76 | 201.5 | 355 | 1 | 4 |
| 47190 | 150 x 100 | 76 | 173.3 | 300 | 1 | 5 |

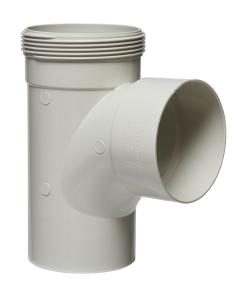

88° Junctions M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 46320 | 100 | 235 | 50 | 133 | 1 | 14 |

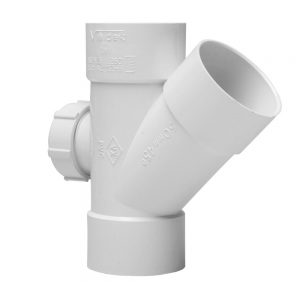

45° I.O. Junctions F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 54850 | 50 | 30 | 102 | 150 | 1 | 90 |
| 54910 | 100 | 50 | 198 | 278 | 1 | 6 |

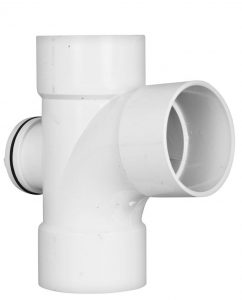

85° I.O. Junctions F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 54860 | 50 | 30 | 80.5 | 140 | 10 | 40 |
| 54880 | 65 | 38 | 115 | 172.5 | 1 | 50 |

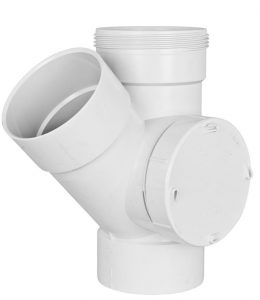

45° Side Access Junctions F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 46230 | 100 | 50 | 277 | 1 | 8 |
| 46240 | 100 | 50 | 1 | 8 |

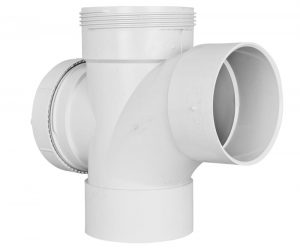

88° Rear Access Junctions F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 46310 | 100 | 50 | 145.3 | 242 | 1 | 10 |

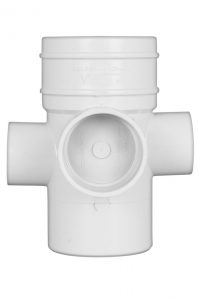

88° Riser Junctions M-F
| Vinidex Code | Nominal Size (mm) | L1 (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 55710 | 80 x 50 x 40 x 40 x 40 | 165.5 | 5 | 15 | |
| 55720 | 80 x 50 x 50 x 40 x 40 | 84 | 163 | 5 | 15 |
| 46560 | 100 x 50 | 86.6 | 175 | 5 | 15 |
| 46570 | 100 x 50 x 50 x 50 x 40 | 97.3 | 210 | 1 | 10 |
| 46575 | 100 x 50 x 50 x 40 x 40 | 182 | 1 | 10 |
