Contact Vinidex Customer Service for availability of products on this page.
RRJ Fittings – Bends

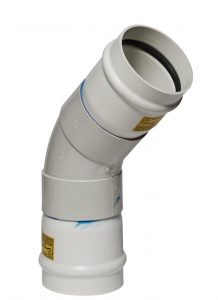

45° Sewer Bends F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | L2 (mm) | Min. (Bag) Quantity | Carton Quantity |
| 50030 | 100 | 1 | 12 | |||
| 50320 | 150 | 107 | 155 | 155 | 1 | 1 |
| 51010 | 225 | 160 | 334 | 334 | 1 | 4 |
| 51660 | 300 | 187 | 377 | 377 | 1 | 1 |

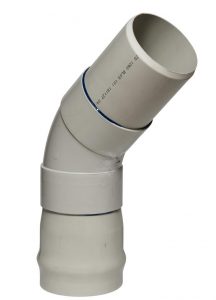

45° Sewer Bends M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | L2 (mm) | Min. (Bag) Quantity |
| 50080 | 100 | 97 | 175 | 78 | 1 |
| 50360 | 150 | 107 | 153.5 | 169 | 1 |
| 51040 | 225 | 160 | 334 | 337 | 1 |

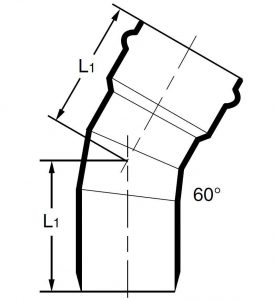

60° Sewer Bends M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | L2 (mm) | Min. (Bag) Quantity | Carton Quantity |
| 50090 | 100 | 98 | 225 | 79 | 1 | 15 |

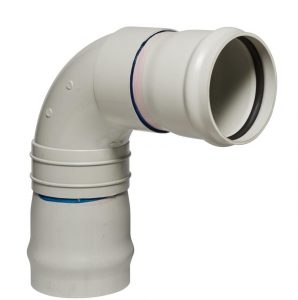

88° Sewer Bends F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Min. (Bag) Quantity | Carton Quantity |
| 50330 | 150 | 1 | 6 |
90° Sewer Bends F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Min. (Bag) Quantity | Carton Quantity |
| 50050 | 100 | 78 | 230 | 120 | 1 | 12 |

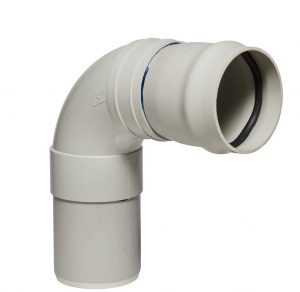

90° Sewer Bends M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Min. (Bag) Quantity | Carton Quantity |
| 50370 | 150 | 107 | 257 | 257 | 1 | 6 |
