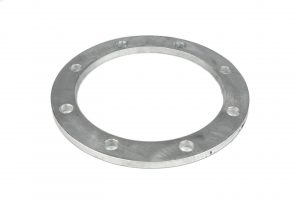

Backing Rings – Galvanised – Table E



Contact Vinidex Customer Service for availability of products on this page.
Vinidex Code Nominal Size (mm) OD (mm) ID (mm) Min. Thickness (mm) PCD (mm) No. Bolts Bolts Diameter
83560 200 335 252 19 292 8 M20
83580 225 370 278 22 324 12 M20
83585 250 405 309 22 356 12 M20
83453 375
83590 300 455 349 25 406 12 M24
83618 375
83591 400 580 434 32 521 12 M24
