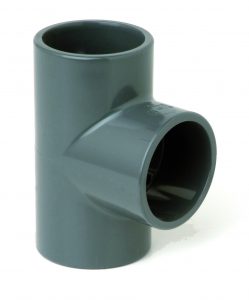

CAT 19 Tees – SCJ

Contact Vinidex Customer Service for availability of products on this page.

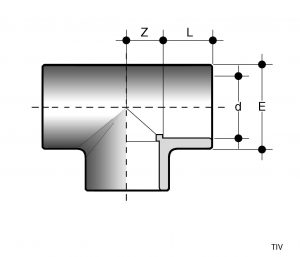

Vinidex Code	Nominal Size (mm)	PN	d (mm)	L (mm)	Z (mm)	E (mm)	Approx. Weight (kg)
30393	200	16	225	119	114	258	9.8
30394	225	10	250	131	128	286	12.5
30395	250	10	280	146	144	319	18.2
30396	300	10	315	164	162	360	24.7
30397	375	5	400	206	280	432	39.5
