- Roads – infrastructure, stormwater, asset renewal
- Rail – stormwater run-off
- Mining – stormwater and aggressive ground
- Rural – culverts and land drainage
- Land development – residential and industrial
Features and benefits
Approved by authorities
StormPRO has been approved for use by several road and rail authorities nationally, making it the trusted name in underground stormwater pipe solutions.
Uncompromising performance
StormPRO is made to stringent Australian Standards (AS/NZS 5065) and has excellent hydraulic performance.
Safe and easy to handle
StormPRO is lighter than concrete pipe, easy to handle, and produces no silica dust when cut.
Durable and lasting
StormPRO has a 100-year design life and is recyclable at the end of life, making it a sustainable solution that stands the test of time.
Sustainable practices
All StormPRO production waste is reused in its manufacturing process, ensuring no waste goes into landfill.
Flexible
When StormPRO pipes are subjected to load, the pipe will initially deflect and take advantage of the lateral pressure provided by the surrounding soil. After initial settlement, there is no further increase in pipe deflection.
Australian made
StormPRO is locally made for all Australian conditions.
Wide size range available
StormPRO comes in a wide variety of sizes, making it as versatile as it is effective. Choose from 225mm to 900mm diameter pipes in lengths of 3 or 6 metres.
Applications
Product Properties
_
Size Range
150-900mm
_
_
_
Material
Polypropylene (PP)
Classification
SN8
_
Temperature
Suitable for continuous service temperatures up to 60ºC and short-term discharge of up to 90ºC.
_
_
Chemical
_
Location
Below and above ground installation
Discover the performance capabilities of StormPRO by Vinidex
Did you know?
StormPRO has a proven track record – having been used by Vinidex customers on numerous projects. To discover some of the projects delivered with StormPRO talk to our specification team.
How do StormPRO pipes compare against Reinforced Concrete Pipes?
StormPRO by Vinidex provides benefits that traditional concrete pipes can not match.
More versatile
Vinidex StormPRO pipes offer greater versatility compared to concrete pipes. When conditions are suitable, Vinidex SN8 pipes can replace various classes of concrete pipes, simplifying the need for multiple pipe classes on site.
Lightweight for fast installation
StormPRO pipes are lighter and more flexible than reinforced concrete pipe, resulting in less than a quarter of the time required to install.¹,²
Project Savings
Compared to reinforced concrete pipe, on average choosing StormPRO results in a 31% reduction in the overall installed cost.¹
Crack Resistant
Due to the polypropylene material properties of StormPRO pipes and it’s ability to adapt to soil movement, cracking does not occur. Under the similar conditions, where soil movement occurs, concrete pipes could potentially show signs of cracking.
Smooth and efficient water flow
StormPRO pipes have a smoother internal surface increasing the efficiency of water flow & hydraulic performance by 27%, therefore a reduced pipe diameter may be achievable for StormPRO, resulting in additional project cost savings.³
Products

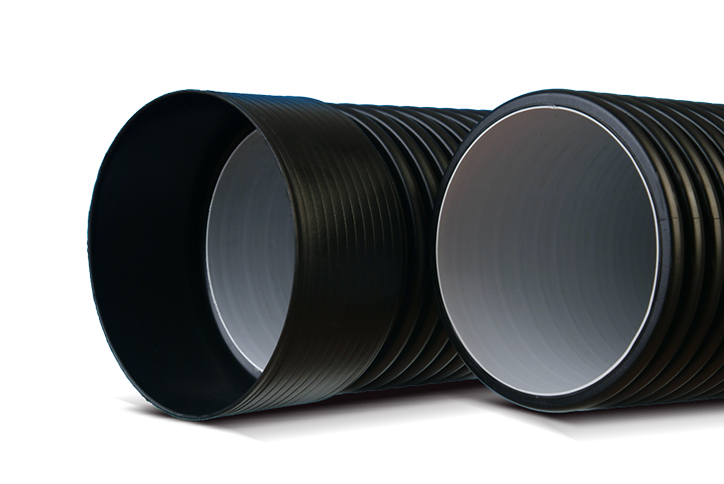

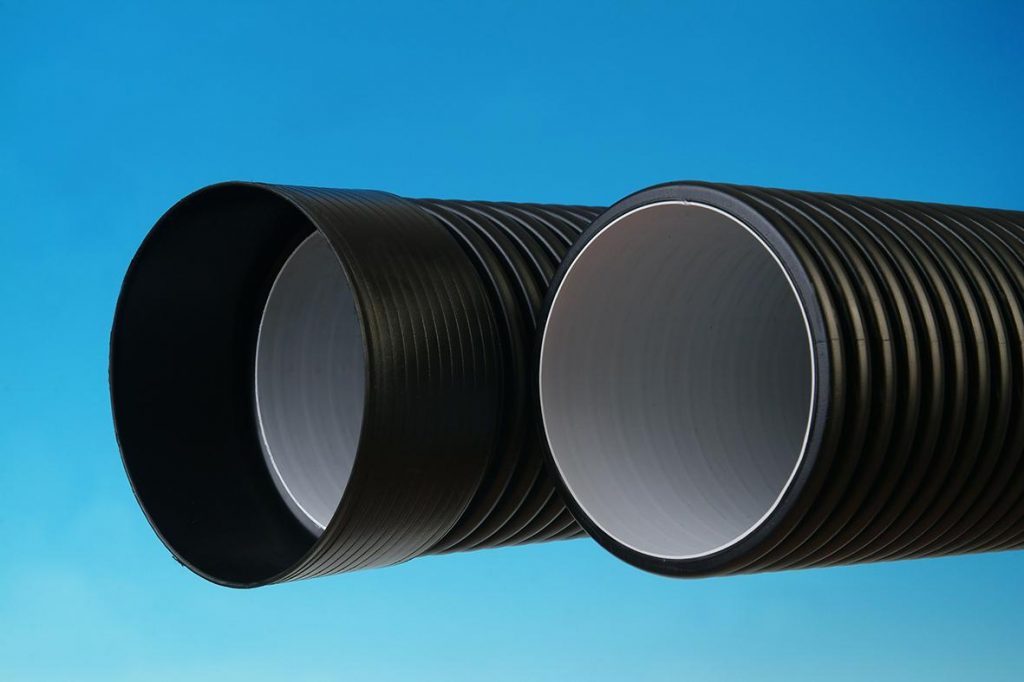

StormPRO® Pipe
StormPRO® Pipe Dimensions
StormPRO® Slotted Pipe
PRO2® Rubber Rings
PRO2® Rubber Rings for Slip Couplings
Plain Couplings
Slip Couplings
15° Bends
22.5° Bends
30° Bends
PRO Transition Couplers
45° Bends
88° Bends
45° Junctions
45° Junctions – Adaptor to PVC DWV
45° Junctions – Stormwater
88° Junctions
88° Junctions – Stormwater
90° Elbows – Stormwater
Tees
Inspection Tees
Push On Caps
Level Invert Tapers (LIT)
LIT – PRO Spigot to PVC DWV SCJ Socket
Adaptor Couplings – PRO Socket to PVC SCJ Socket
Adaptor Couplings – PRO Socket to PVC RRJ Socket
Adaptor Couplings – PRO to Ultra Rib Socket
90° PRO Saddles
Grommets
PRO Saw
Environmental Product Declaration
Safety Data Sheets (SDS)
Click here to access our Safety Data Sheets page.
Product Approvals
Standards for Polypropylene pipe
StormPRO® polypropylene pipes are manufactured in accordance with AS/NZS 5065:2005 Polyethylene and polypropylene pipes and fittings for drainage and sewer applications.
StandardsMark
Watermark
StormPRO® and StormFLO® Installation Video
Standards
- StormPRO® polypropylene pipes are manufactured in accordance with AS/NZS 5065:2005 Polyethylene and polypropylene pipes and fittings for drainage and sewer applications.
- For installation guidance, please refer to AS/NZS 2566.2 Buried flexible pipelines, Part 2: Installation.
Vinidex Installation Guide

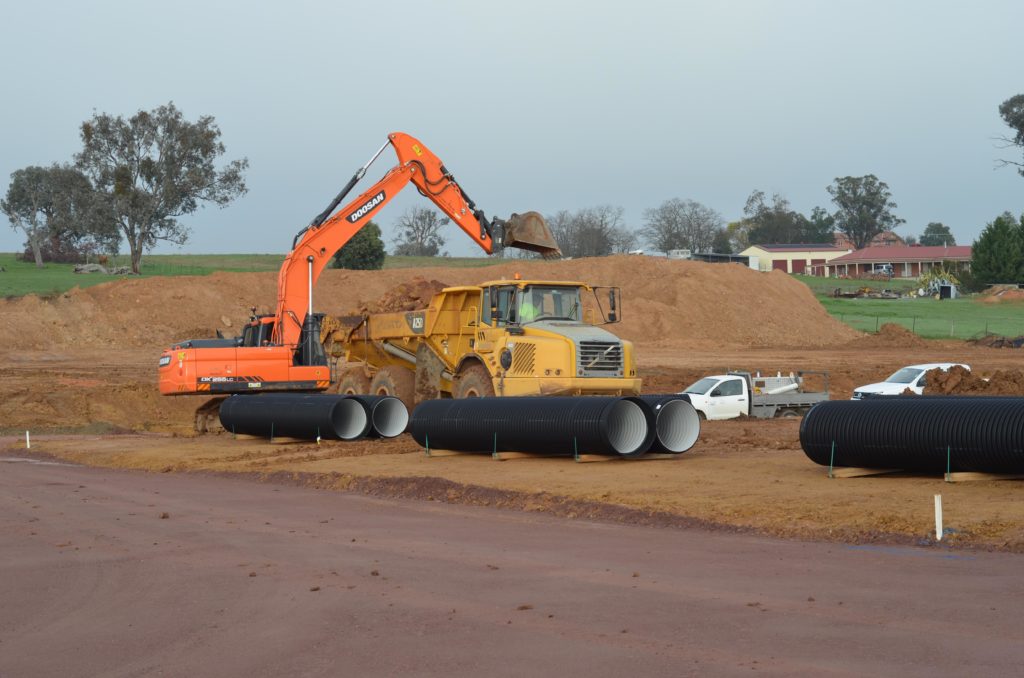

Springridge Housing Estate Drainage Project - Wallan, VIC
Peaceful Avenue Drainage Project - Armstrong Creek, VIC
Internal Pipe Inspection - StormPRO under roads
| A housing development project showcases the benefits of the light internal wall of StormPRO for internal pipe examination…read more. |
Dairy Farm Drainage - Koroit, VIC
| This project required quick removal of on-farm waste-water through utilising a product that was tough, easy to install and freely available from their local farm supplier….Read more |
Gen Fyansford Estate - Fyansford, VIC
| This project required deep stormwater mains with a specific length for safe installation. The selected product also needed to exceed council standards and suit under road installation…Read more |

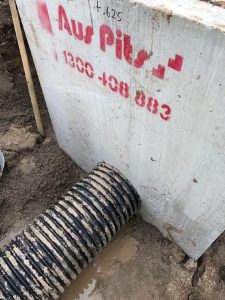

Wallan Place - Wallan, VIC
| In collaboration with Vinidex, Aus Pits have developed a new system of pipe blockouts to suit the external size of StormPRO® pipes…Read more |

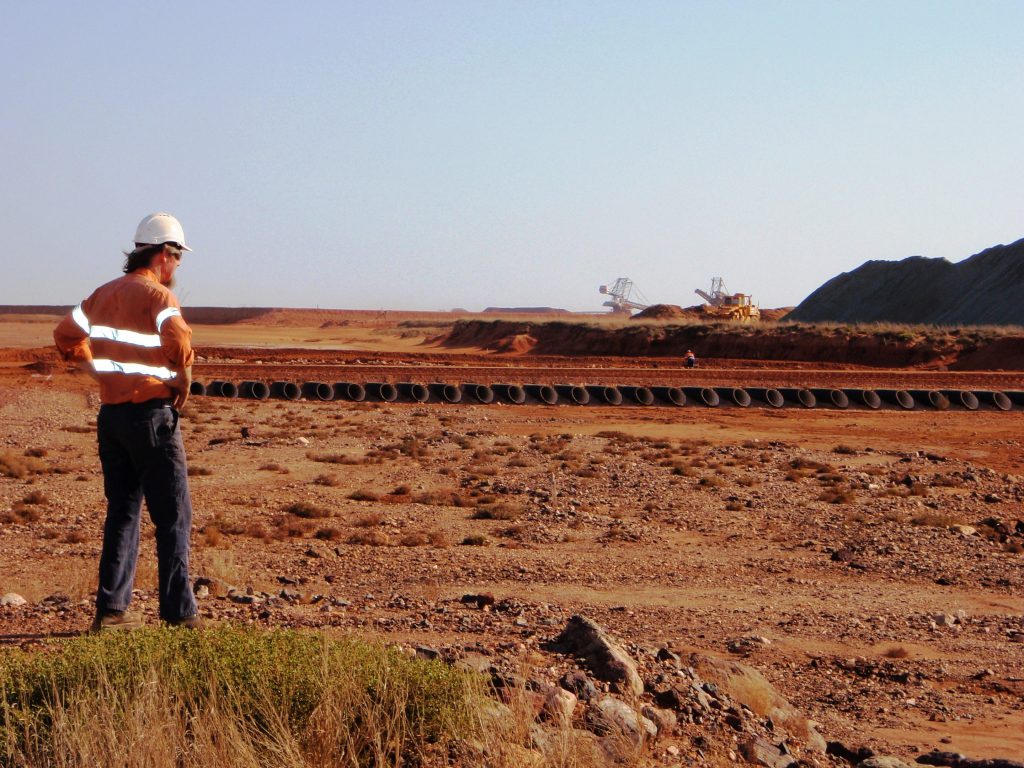

Utah Point Road Drainage - Port Hedland, WA
| The harsh conditions of Port Hedland required a product to sustain aggressive groundwater and mine traffic carrying 100+ tonnes of Iron Ore. There were also strict construction deadlines…Read more |

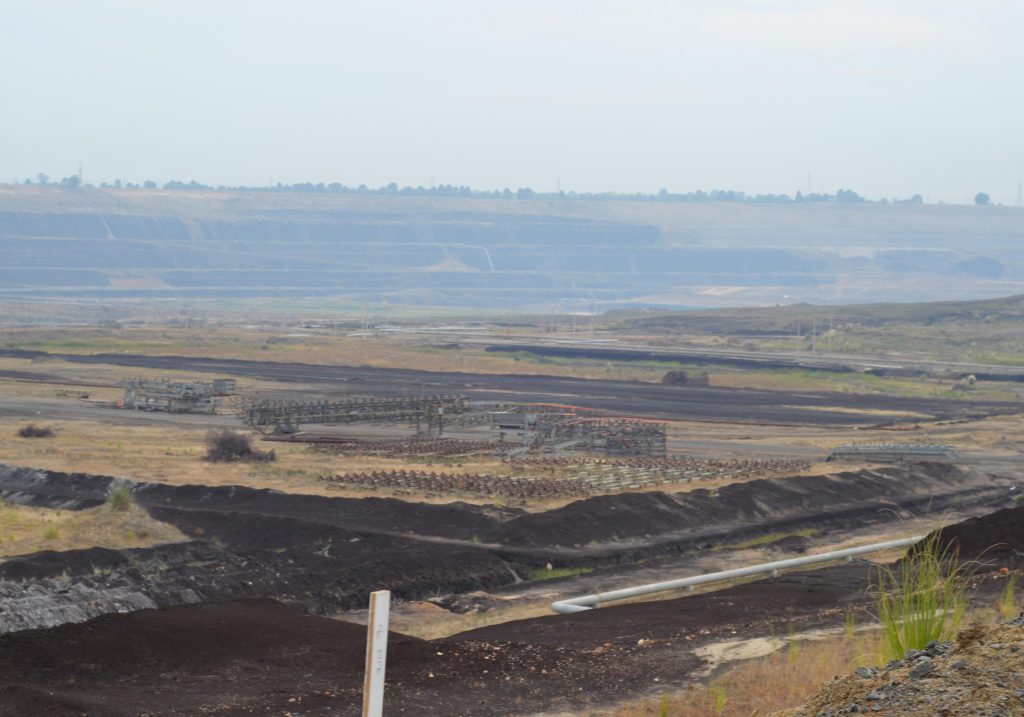

Mine Rehabilitation for Hazelwood Mine - Latrobe Valley, VIC
| Extreme environments require a tough and durable solution – polypropylene offers high resistance to abrasion and resistance to numerous chemicals found in the mining environment…Read more |
Product Catalogues
Certifications & Approvals
Installation Video
Installation Guides
Projects
Springridge Housing Estate Drainage Project - Wallan, VIC
Peaceful Avenue Drainage Project - Armstrong Creek, VIC
Internal Pipe Inspection - StormPRO under roads
| A housing development project showcases the benefits of the light internal wall of StormPRO for internal pipe examination…read more. |
Dairy Farm Drainage - Koroit, VIC
| This project required quick removal of on-farm waste-water through utilising a product that was tough, easy to install and freely available from their local farm supplier….Read more |
Gen Fyansford Estate - Fyansford, VIC
| This project required deep stormwater mains with a specific length for safe installation. The selected product also needed to exceed council standards and suit under road installation…Read more |
Wallan Place - Wallan, VIC
| In collaboration with Vinidex, Aus Pits have developed a new system of pipe blockouts to suit the external size of StormPRO® pipes…Read more |
Utah Point Road Drainage - Port Hedland, WA
| The harsh conditions of Port Hedland required a product to sustain aggressive groundwater and mine traffic carrying 100+ tonnes of Iron Ore. There were also strict construction deadlines…Read more |
Mine Rehabilitation for Hazelwood Mine - Latrobe Valley, VIC
| Extreme environments require a tough and durable solution – polypropylene offers high resistance to abrasion and resistance to numerous chemicals found in the mining environment…Read more |
Technical Datasheets
Product Downloads
¹. Calculated RCP Class 2 weights against similar ID pipes for StormPRO and averaged over the StormPRO range DN300 to DN900.
². This comparison is based on an independent assessment by The Engineering and Design Company Pty Ltd (E&DCo) of the installation of StormPRO SN8 twin wall corrugated PP stormwater pipe and Class 2 RCP. E&DCo relied on the requirements of Australian Standards (AS/NZS 2566.2 “Buried flexible pipelines – Installation” and AS/NZS 3725 “Design for installation of buried concrete pipes”) and their own database of construction costs in preparing this assessment. The following site conditions have been assumed:
– pipes installed in straight, uninterrupted lengths trench geometry to the relevant Australian Standard
– cover height 750mm
– no groundwater or other adverse ground conditions.
– comparison data has been rounded to the nearest whole number where applicable
³. RCP results in 27% more head loss than StormPRO in this example.
DNS300 SN8 StormPRO – Flow Rate 100L/s
DN300 Class 2 RCP – Flow Rate 100L/s
