Contact Vinidex Customer Service for availability of products on this page.
Compression Fittings for Gas

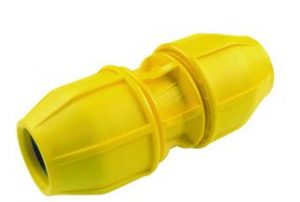

PE Gas Joiner
| Vinidex Code | Philmac Code | Nominal Size (mm) | Min. (Bag) Quantity | Carton Quantity |
| 91838 | 96211100 | 16 mm with liners included for SDR 17.6 pipe | 1 | 180 |
| 91839 | 96212200 | 20 mm with liners included for SDR 17.6 pipe | 1 | 120 |
| 91840 | 96213300 | 25 mm with liners included for SDR 17.6 pipe | 1 | 80 |
| 91841 | 96214400 | 32 mm with dedicated liners for SDR 11 pipe | 1 | 45 |
| 91842 | 96215500 | 40 mm with dedicated liners for SDR 11 pipe | 1 | 20 |
| 91843 | 96217700 | 63 mm with dedicated liners for SDR 11 pipe | 1 | 8 |
PE Gas Reducing Joiner
| Vinidex Code | Philmac Code | Nominal Size (mm x mm) | Min. (Bag) Quantity | Carton Quantity |
| 91844 | 96213100 | 25 x 16 with liners included for SDR 17.6 pipe | 1 | 80 |

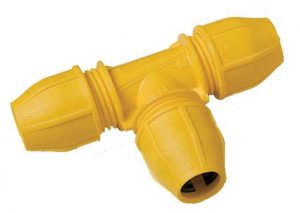

PE Gas Tees
| Vinidex Code | Philmac Code | Nominal Size (mm) | Min. (Bag) Quantity | Carton Quantity |
| 91845 | 96231100 | 16 mm with liners included for SDR 17.6 pipe | 1 | 100 |
| 91846 | 96232200 | 20 mm with liners included for SDR 17.6 pipe | 1 | |
| 91847 | 96233300 | 25 mm with liners included for SDR 17.6 pipe | 1 | 35 |
| 91848 | 96234400 | 32 mm with dedicated liners for SDR 11 pipe | 1 | 20 |
| 91849 | 96235500 | 40 mm with dedicated liners for SDR 11 pipe | 1 | 10 |
| 91850 | 96237700 | 63 mm with dedicated liners for SDR 11 pipe | 1 | 5 |
PE Gas End Caps
| Vinidex Code | Philmac Code | Nominal Size (mm) | Min. (Bag) Quantity | Carton Quantity |
| 91851 | 96202910 | 20 mm with liner included for SDR 17.6 pipe | 1 | |
| 91852 | 96203910 | 25 mm with liner included for SDR 17.6 pipe | 1 | 140 |
| 91853 | 96204910 | 32 mm with dedicated liner for SDR 11 pipe | 1 | 80 |
| 91854 | 96205910 | 40 mm with dedicated liner for SDR 11 pipe | 1 | 50 |
| 91855 | 96207910 | 63 mm with dedicated liner for SDR 11 pipe | 1 |

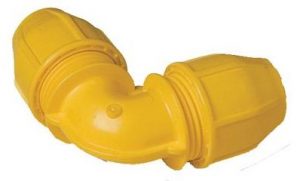

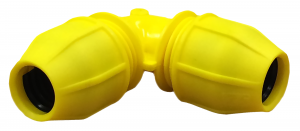

PE Gas Elbow
| Vinidex Code | Philmac Code | Nominal Size (mm) | Min. (Bag) Quantity | Carton Quantity |
| 91856 | 96251100 | 16 mm with liners included for SDR 17.6 pipe | 10 | 180 |
| 91857 | 96252200 | 20 mm with liners included for SDR 17.6 pipe | 1 | |
| 91858 | 96253300 | 25 mm with liners included for SDR 17.6 pipe | 1 | 70 |
| 91859 | 96254400 | 32 mm with dedicated liners for SDR 11 pipe | 1 | 35 |
| 91860 | 96255500 | 40 mm with dedicated liners for SDR 11 pipe | 1 | 20 |
PE Gas Male End Connectors
| Vinidex Code | Philmac Code | Nominal Size (mm x inch) | Min. (Bag) Quantity | Carton Quantity |
| 91862 | 96223200 | 25 mm x 3/4 BSP with liner included with SDR 17.6 | 1 | 140 |
| 91863 | 96224300 | 32 mm x 1 BSP with dedicated liner included with SDR 11 | 1 | 80 |
| 91864 | 96225400 | 40 mm x 1-1/4 BSP with dedicated liner included with with SDR 11 | 1 | 40 |

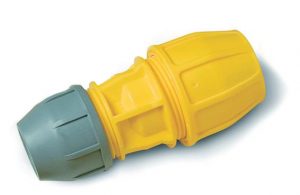

Metric to Imperial Gas PE Pipe Joiner
| Vinidex Code | Philmac Code | Nominal Size (mm x inch) | Min. (Bag) Quantity | Carton Quantity |
| 91865 | 96217610 | 63 mm SDR11 x 1-1/2 Imp SDR 9.9 pipe | 1 | 16 |

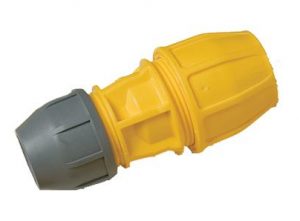

UTC Gas Joiner - PE x UTC
| Vinidex Code | Philmac Code | Nominal Size (mm) | Min. (Bag) Quantity | Carton Quantity |
| 91867 | 96104200 | 20 mm PE with liner for SDR 17.6 x 21-27 UTC (18NB) 9 | 1 | 70 |
| 91868 | 96105200 | 20 mm PE with liner for SDR 17.6 x 27-34 UTC | 1 | 50 |
| 91870 | 96104400 | 32 mm PE with liner for SDR 11 x 21-27 UTC (18NB) | 1 | 0 |

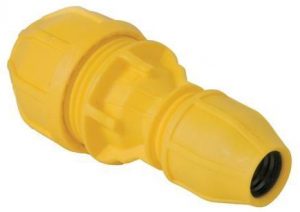

UTC Gas Joiner - UTC x UTC
| Vinidex Code | Philmac Code | Nominal Size (mm x mm) | Min. (Bag) Quantity | Carton Quantity |
| 91872 | 96114310 | 21-27 x 15-21 | 1 | 55 |
| 91873 | 96114410 | 21-27 x 21-27 | 1 | 50 |
UTC Gas Elbow - PE x UTC
| Vinidex Code | Philmac Code | Nominal Size (mm) | Min. (Bag) Quantity | Carton Quantity |
| 91871 | 96152300 | UTC Elb 20 SDR 17.6 x 15-21 | 1 | 120 |
UTC Gas Elbow - UTC x UTC
| Vinidex Code | Philmac Code | Nominal Size (mm x mm) | Min. (Bag) Quantity | Carton Quantity |
| 91874 | 96154310 | 21-27 x 15-21 | 1 | 55 |
| 91875 | 96154410 | 21-27 x 21-27 | 1 | 0 |

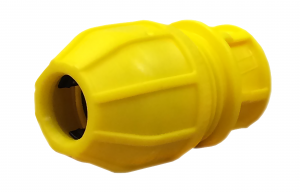

UTC Gas End Cap
| Vinidex Code | Philmac Code | Nominal Size (mm) | Min. (Bag) Quantity | Carton Quantity |
| 91876 | 96104910 | UTC End Cap 21-27 | 1 | 70 |

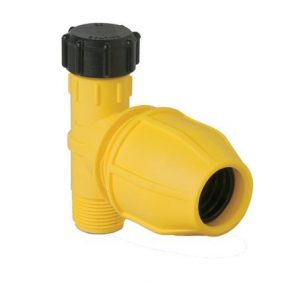

Gas Service Tees
| Vinidex Code | Philmac Code | Nominal Size (mm) | Min. (Bag) Quantity | Carton Quantity |
| 91877 | 96181911 | 20mm Service Tee Plug Gas w/ liner SDR17.6 | 1 | 50 |
| 91878 | 96182111 | 25mm Service Tee Plug Gas w/ liner SDR17.6 | 1 | 35 |
| 91879 | 96180811 | 32mm Service Tee Plug Gas w/ liner SDR11 | 1 | 30 |
| 91880 | 96182311 | 40mm Service Tee Plug Gas w/ liner SDR11 | 1 | 20 |
| 91881 | 96182211 | 25mm Service Tee Cutter Gas w/ liner SDR17.6 | 1 | 35 |
| 91882 | 96180911 | 32mm Service Tee Cutter Gas w/ liner SDR11 | 1 | 30 |
| 91883 | 96182411 | 40mm Service Tee Cutter Gas w/ liner SDR11 | 1 | 20 |
