Contact Vinidex Customer Service for availability of products on this page.

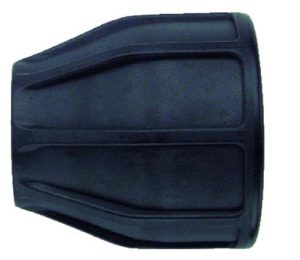

Metric Nut Assembly with Acetal Grip Ring and NBR O Ring

Vinidex Code Philmac Code Nominal Size (inch x mm) Min. (Bag) Quantity Carton Quantity
91248 97770200 ¾ to 20 1 250
91249 97770300 1 to 25 1 180
91250 97770400 1¼ to 32 1 100
91251 97770500 1½ to 40 1 75
91252 97770600 2 to 50 1 50
91253 97770700 63 1 0
91254 97770810 75 1 0
91255 97770910 90 1 0
91256 97770110 110 1 8

Metric Nut Assembly with Acetal Grip Ring and EDPM O Ring

Vinidex Code Philmac Code Nominal Size (mm) Min. (Bag) Quantity Carton Quantity
91441 97870200 20 1 200
91442 97870300 25 1 180
91443 97870400 32 1 100
91444 97870500 40 1 60
91445 97870600 50 1 50
91446 97870700 63 1 30
91447 97870810 75 1 25
91448 97870910 90 1 15
91449 110

Metric Nut Assembly with Polysulphone Grip Ring and EPDM O Ring and PP Spacer

Vinidex Code Philmac Code Nominal Size (mm x mm) Min. (Bag) Quantity Carton Quantity
91459 90712210 20 x 20 1 180
91460 90713310 25 x 25 1 150
91461 90714410 32 x 32 1 100
91462 90715520 40 x 40 1 100
91463 90716610 50 x 50 1
91464 90717710 63 x 63 1 30
91465 90718810 75 x 75 1 25
91273 90719910 90 x 90 1 15
91466 90710010 110 x 110 1

Metric Nut Assembly with Acetal Grip Ring and Viton O Ring and PP Spacer

Vinidex Code Philmac Code Nominal Size (mm x mm) Min. (Bag) Quantity Carton Quantity
91450 90702210 20 x 20 1
91451 90703310 25 x 25 1
91452 90704410 32 x 32 1
91453 90705510 40 x 40 1
91454 90706610 50 x 50 1
91455 90707710 63 x 63 1
91456 90708810 75 x 75 1
91457 90709910 90 x 90 1 40
91458 90700010 110 x 110 1

Metric Nut Assembly with Polysulphone Split Ring and Viton O Ring and PP Spacer

Vinidex Code Philmac Code Nominal Size (mm x mm) Min. (Bag) Quantity Carton Quantity
92089 99902210 20 x 20 1 250
92090 99903310 25 x 25 1 180
92091 99904410 32 x 32 1 100
92092 99905510 40 x 40 1 75
92093 99906610 50 x 50 1 50
92094 99907710 63 x 63 1 0
92095 99908810 75 x 75 1 0
92096 99909910 90 x 90 1 0
92097 99900010 110 x 110 1 0
