Contact Vinidex Customer Service for availability of products on this page.
Recycled Water Fittings

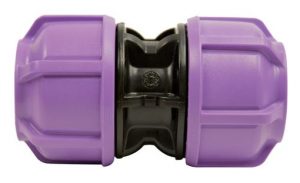

Metric Joiners - PE x PE - Purple
| Vinidex Code | Philmac Code | Nominal Size (mm x mm) | Min. (Bag) Quantity | Carton Quantity |
| 91815 | 78712200 | 20 x 20 | 10 | 150 |
| 91816 | 78713300 | 25 x 25 | 10 | 100 |
| 91817 | 78714400 | 32 x 32 | 5 | 65 |

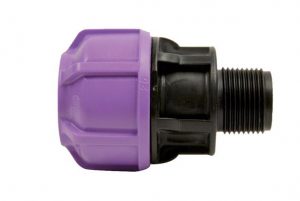

Metric End Connectors - PE x MI BSP - Purple
| Vinidex Code | Philmac Code | Nominal Size (mm x inch) | Min. (Bag) Quantity | Carton Quantity |
| 91818 | 78722200 | 20 x 3/4 | 10 | |
| 91819 | 78723200 | 25 x 3/4 | 10 | |
| 91820 | 78723300 | 25 x 1 | 10 | |
| 91821 | 78724300 | 32 x 1 | 5 |

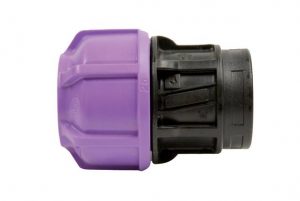

Metric End Connectors - PE x FI BSP - Purple
| Vinidex Code | Philmac Code | Nominal Size (mm x mm) | Min. (Bag) Quantity | Carton Quantity |
| 91822 | 78782200 | 20 x 3/4 | 10 | |
| 91823 | 78783200 | 25 x 3/4 | 10 | |
| 91824 | 78783300 | 25 x 1 | 10 | |
| 91825 | 78784300 | 32 x 1 | 5 |

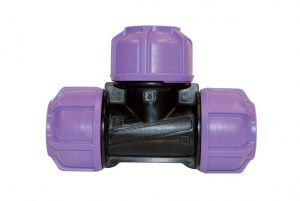

Metric Tees - PE x PE x PE - Purple
| Vinidex Code | Philmac Code | Nominal Size (mm x mm x mm) | Min. (Bag) Quantity | Carton Quantity |
| 91826 | 78732200 | 20 x 20 x 20 | 10 | |
| 91827 | 78733300 | 25 x 25 x 25 | 5 | |
| 91828 | 78734400 | 32 x 32 x 32 | 5 |

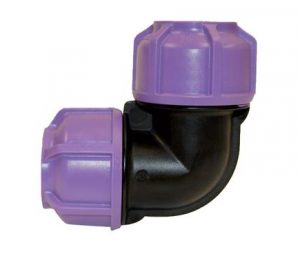

Metric Elbows - PE x PE - Purple
| Vinidex Code | Philmac Code | Nominal Size (mm x mm) | Min. (Bag) Quantity | Carton Quantity |
| 91829 | 78752200 | 20 x 20 | 10 | |
| 91830 | 78753300 | 25 x 25 | 10 | |
| 91831 | 78754400 | 32 x 32 | 5 |

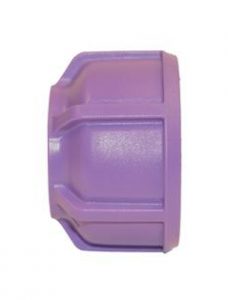

Metric Nut Assembly - Purple
| Vinidex Code | Philmac Code | Nominal Size (mm x mm) | Min. (Bag) Quantity | Carton Quantity |
| 91832 | 78770200 | 20 x 20 | 1 | 250 |
| 91833 | 78770300 | 25 x 25 | 1 | 0 |
| 91834 | 78770400 | 32 x 32 | 1 | 100 |
| 91835 | 78770500 | 40 x 40 | 1 | 0 |
| 91836 | 78770600 | 50 x 50 | 1 | 50 |
Other Philmac Metric Compression Fittings Products
