Universal Transition Fittings



Contact Vinidex Customer Service for availability of products on this page.

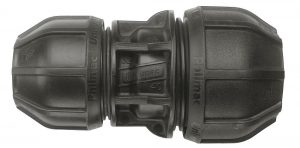

Metric Joiners - Trans x PE PN12.5



Vinidex Code Philmac Code Nominal Size (mm x mm) Min. (Bag) Quantity Carton Quantity
91040 70103200 15-21 x 20 1 100
91041 70103300 15-21 x 25 1 70
91042 70104200 21-27 x 20 1 70
91043 70104300 21-27 x 25 1 60
91044 70105200 27-34 x 20 1 50
91045 70105300 27-34 x 25 1 50
91046 70105400 27-34 x 32 1 40
91047 70106400 39-43 x 32 1 25
91048 70107400 34-39 x 32 1 30
91049 70107500 34-39 x 40 1 20
91050 70108600 47-49 x 50 1 12
91051 70108700 47-49 x 63 1 10
91052 70109700 59-61 x 63 1 10

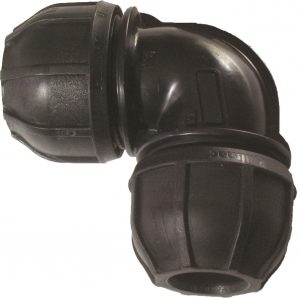

Metric Elbows - Trans x PN12.5



Vinidex Code Philmac Code Nominal Size (mm x mm) Min. (Bag) Quantity Carton Quantity
91781 70153200 15-21 x 20 1 90
91782 70153300 15-21 x 25 1 65
91783 70154300 21-27 x 25 1 55
91784 70154400 21-27 x 32 1 35
91785 70155300 27-34 x 25 1 35
91786 70155400 27-34 x 32 1 25

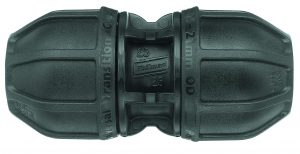

Double Ended Repair Coupling - Transition x Transition PN12.5



Vinidex Code Philmac Code Nominal Size (mm x mm) Min. (Bag) Quantity Carton Quantity
91787 97113310 15-21 x 15-21 1 50
91788 97114410 21-27 x 21-27 1 40
91789 97115510 27-34 x 27-34 1 30
91790 97116610 39-43 x 39-43 1 20
91791 97117710 34-39 x 34-39 1 25
91792 97118810 47-49 x 47-49 1 15
91793 97119910 59-61 x 59-61 1 9

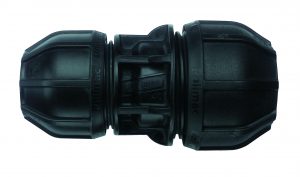

Reducing Repair Couplers - Transition x Transition PN12.5



Vinidex Code Philmac Code Nominal Size (mm x mm) Min. (Bag) Quantity Carton Quantity
91794 97114310 21-27 x 15-21 1 50
91795 97115410 27-34 x 21-27 1 35
91796 97115310 27-34 x 15-21 1 35
91797 97115010 34-39 x 27-34 1 25
91798 97116510 39-43 x 27-34 1 0

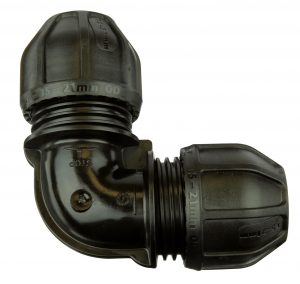

Elbows Transition to Transition (Copper-GI-PVC) PN12.5



Vinidex Code Philmac Code Nominal Size (mm x mm) Min. (Bag) Quantity Carton Quantity
91799 97053300 15-21 x 15-21 1 60
91800 97054400 21-27 x 21-27 1 0

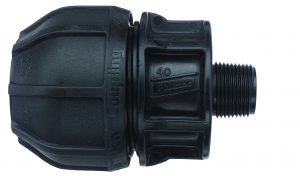

MI End Connectors - Transition x MI BSP PN12.5



Vinidex Code Philmac Code Nominal Size (mm x inch) Min. (Bag) Quantity Carton Quantity
91801 97123200 15-21 x 3/4 1 120
91802 97123300 15-21 x 1 1 120
91803 97124200 21-27 x 3/4 1 90
91804 97124300 21-27 x 1 1 85
91805 97124400 21-27 x 11/4 1 0
91806 97125200 27-34 x 3/4 1 50
91807 97125300 27-34 x 1 1 50
91808 97125400 27-34 x 11/4 1 50
91809 97125500 27-34 x 11/2 1 0

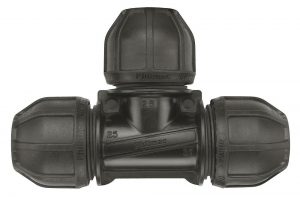

Tees - Transition x Transition x Transition (Copper-GI-PVC) PN12.5



Vinidex Code Philmac Code Nominal Size (mm) Min. (Bag) Quantity Carton Quantity
91810 97133310 15-21 1 40

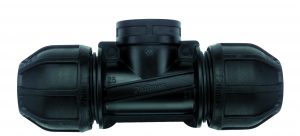

Female Tee - Transition x Transition x Transition x FI BSP PN12.5



Vinidex Code Philmac Code Nominal Size (mm x inch) Min. (Bag) Quantity Carton Quantity
91811 97143200 15-21 x 3/4 1 50
91812 97143300 15-21 x 1 1 45
91813 97144200 21-27 x 3/4 1 35
91814 97144300 21-27 x 1 1 30
