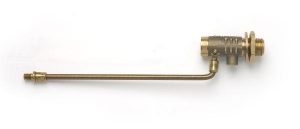

150 Series Brass Float Valves (Brass Plunger, S/S Seat)



Contact Vinidex Customer Service for availability of products on this page.

*For high pressure applications (>1000kPa), the 100mm float is recommended.



Vinidex Code Philmac Code Nominal Size (mm) Code BSP Size (inch) Rec. Float Size Min. (Bag) Quantity Carton Quantity
91951 90300500 10 2 | 4 3/8 80/100* 1 150
91952 90300700 15 1 | 6 ½ 100 1 50
91953 90301300 15 3 | 7 | 15 ½ 100 1 50
91954 90301500 15 3 | 6 | 15 ½ 100 1 50
91955 90302300 15 3 | 6 | 14 | 15 ½ 100 1 50
91956 90303100 15 2 | 6 | 15 ½ 100 1 50
91957 90304400 20 1 | 7 ¾ 150 1 30
91958 90304600 25 1 | 9 1 150 1 16
91959 90304800 32 1 | 9 175 1 15
91960 90304900 40 1 | 11 1 x 1½ 225 1 10
91961 90305000 50 1 | 13 2 225 1 5

CODES

1. Tapered BSP Thread 6. Lever Length 200mm 11. Lever Length 425mm
2. Short Parallel BSP Threaded 7. Lever Length 250mm 12. Lever Length 440mm
3. Long Parallel BSP Thread 8. Lever Length 300mm 13. Lever Length 455mm
4. Lever Length 125mm 9. Lever Length 355mm 14. Stem Sleeve
5. Lever Length 170mm 10. Lever Length 400mm 15. Backnut

Please note that not all products may be Australian made and all lever lengths are approximate.
