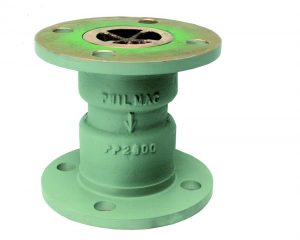

Flange Series Ratio Valves (Tested)



Contact Vinidex Customer Service for availability of products on this page.

Vinidex Code Philmac Code Body Control Size (mm) Ratio Flange Sizes (mm) to AS 2129 (inch) Table Pattern Min. (Bag) Quantity
92020 90260100 50 (2:1) 50 to 2 D/E 1
92021 90260200 50 (3:1) 50 to 2 D/E 1
92022 90260300 50 (4:1) 50 to 2 D/E 1
92023 90260400 50 (5:1) 50 to 2 D/E 1
92024 90260500 50 (2:1) 65 to 2½ D/E 1
92025 90260600 50 (3:1) 65 to 2½ D/E 1
92026 90260700 50 (4:1) 65 to 2½ D/E 1
92027 90260800 50 (5:1) 65 to 2½ D/E 1
92028 90261700 50 (1.5:1) 80 to 3 D/E 1
92029 90260900 50 (2:1) 80 to 3 D/E 1
92030 90261000 50 (3:1) 80 to 3 D/E 1
92031 90261100 50 (4:1) 80 to 3 D/E 1
92032 90261200 50 (5:1) 80 to 3 D/E 1
92033 90263900 80 (1.5:1) 80 to 3 D/E 1
92034 90262600 80 (2:1) 80 to 3 D/E 1
92035 90262700 80 (3:1) 80 to 3 D/E 1
92036 90262800 80 (4:1) 80 to 3 D/E 1
92037 90262900 80 (5:1) 80 to 3 E 1
92038 90263400 80 (1.5:1) 100 to 4 E 1
92039 90263000 80 (2:1) 100 to 4 E 1
92040 90263100 80 (3:1) 100 to 4 E 1
92041 90263200 80 (4:1) 100 to 4 E 1
92042 90263300 80 (5:1) 100 to 4 E 1
92043 90266000 100 (1.5:1) 100 to 4 E 1
92044 90265100 100 (2:1) 100 to 4 E 1
92045 90265200 100 (3:1) 100 to 4 E 1
92046 90265300 100 (4:1) 100 to 4 E 1
92047 90265400 100 (5:1) 100 to 4 E 1
92048 90266500 100 (1.5:1) 150 to 6 E 1
92049 90265500 100 (2:1) 150 to 6 E 1
92050 90265600 100 (3:1) 150 to 6 E 1
92051 90265700 100 (4:1) 150 to 6 E 1
92052 90265800 100 (5:1) 150 to 6 E 1
92053 90267600 150 (2:1) 150 to 6 E 1
92054 90267700 150 (3:1) 150 to 6 E 1
92055 90267800 150 (4:1) 150 to 6 E 1
92056 90267900 150 (5:1) 150 to 6 E 1

Product Support

Need some help? View our Product Support area for downloads, installations and jointing procedures.
