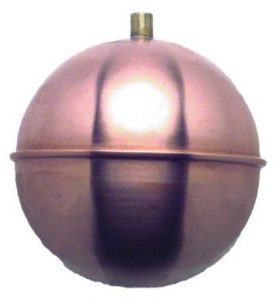

Copper Floats
Copper Floats (Hot Water Rated up to 60°C)
| Vinidex Code | Philmac Code | Nominal Size (mm) | BSP Size (inch) | Whitworth Dimensions (inch) | Min. (Bag) Quantity |
| 91993 | 90161400 | 80 | 3 | 5/16 Whit. | 1 |
| 91994 | 90161700 | 115 | 41/2 | 5/16 Whit. | 1 |
| 91996 | 90161800 | 150 | 6 | 5/16 Whit. | 1 |
| 91998 | 90162100 | 200 | 8 | 3/8 Whit. | 1 |
| 91999 | 90162300 | 255 | 10 | 1/2 Whit. | 1 |
Copper Floats (Hot Water Rated up to 95°C)
| Vinidex Code | Philmac Code | Nominal Size (mm) | BSP Size (inch) | Whitworth Dimensions (inch) | Min. (Bag) Quantity |
| 92000 | 90162800 | 115 | 41/2 | 5/16 Whit. | 1 |
| 92001 | 90162900 | 150 | 6 | 5/16 Whit. | 1 |
| 92003 | 90163100 | 200 | 8 | 3/8 Whit. | 1 |
| 92004 | 90163200 | 255 | 10 | 1/2 Whit. | 1 |
