Contact Vinidex Customer Service for availability of products on this page.
RRJ Fittings – Junctions

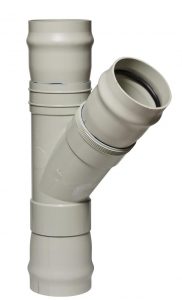

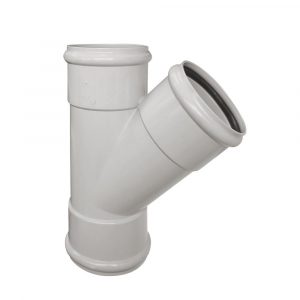

45° Sewer Junctions F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | L2 (mm) | Min. (Bag) Quantity | Carton Quantity |
| 50100 | 100 | 1 | 6 | |||
| 50400 | 150 | 107 | 493 | 324 | 1 | 4 |
| 51090 | 225 | 160 | 900 | 580 | 1 | |
| 51750 | 300 | 187 | 1090 | 660 | 1 |

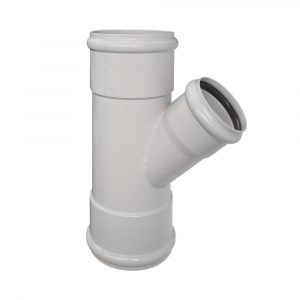

45° Sewer Reducing Junctions F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | L2 (mm) | Min. (Bag) Quantity | Carton Quantity |
| 50380 | 150 x 100 | 107 | 410 | 305 | 1 | 6 |
| 50390 | 150 x 100 | 107 | 410 | 265 | 1 | |
| 51060 | 225 x 100 | 160 | 830 | 400 | 1 | |
| 51080 | 225 x 150 | 160 | 830 | 460 | 1 | |
| 51720 | 300 x 100 | 187 | 810 | 360 | 1 | |
| 51730 | 300 x 150 | 187 | 810 | 503 | 1 | |
| 51740 | 300 x 225 | 184 | 1010 | 575 | 1 | |
| 52430 | 375 x 150 | 198 | 1540 | 559 | 1 |

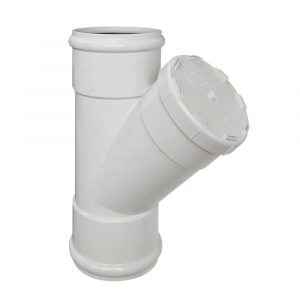

45° Sewer Access Junctions F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | L2 (mm) | Min. Quantity | Pallet Quantity |
| 50402 | 150 | 111 | 451 | 275 | 1 | 20 |

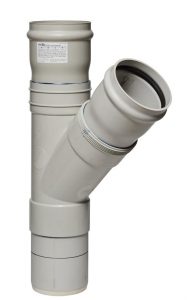

45° Sewer Junctions M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | L2 (mm) | Min. (Bag) Quantity | Carton Quantity |
| 50130 | 100 | 1 | 7 | |||
| 50410 | 150 x 100 | 107 | 420 | 305 | 1 | 3 |
| 50420 | 150 x 100 | 107 | 420 | 265 | 1 | 5 |
| 50430 | 150 | 107 | 507 | 324 | 1 | 5 |
| 51100 | 225 x 100 | 160 | 755 | 400 | 1 | |
| 51120 | 225 x 150 | 160 | 780 | 460 | 1 | |
| 51121 | 225 x 150 | 1 | ||||
| 51760 | 300 x 100 | 187 | 800 | 443 | 1 | |
| 51780 | 300 x 150 | 187 | 800 | 503 | 1 |

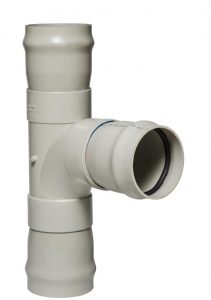

90° Sewer Junctions F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | L1 (mm) | A (mm) | Min. (Bag) Quantity | Carton Quantity |
| 50160 | 100 | 1 | ||||
| 50470 | 150 | 107 | 429 | 493 | 1 | 2 |
| 51140 | 225 x 100 | 160 | 470 | 830 | 1 | |
| 51160 | 225 x 150 | 160 | 488 | 830 | 1 | |
| 51170 | 225 | 160 | 605 | 900 | 1 |

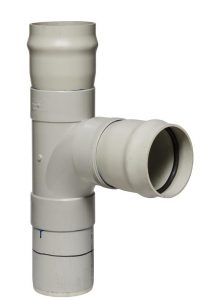

90° Sewer Junctions M-F
| Vinidex Code | Nominal Size (mm) | L1 (mm) | L2 (mm) | Min. (Bag) Quantity | Carton Quantity |
| 50500 | 150 | 540 | 360 | 1 | 3 |
