SCJ Fittings – Bends

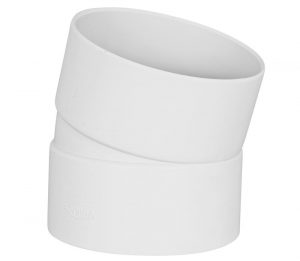

5° Bends F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Quantity | Carton Quantity |
| 46000 | 100 | 50 | 59.5 | 1 | 40 |
| 47582* | 150 | 1 | |||
| *RRJ |
5° Bends M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Quantity | Carton Quantity |
| 46120 | 100 | 50 | 59 | 1 | 27 |
| 50162 | 150 | 1 |

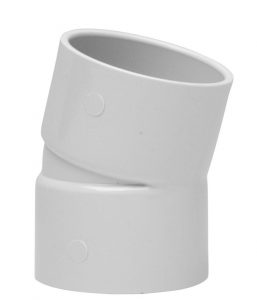

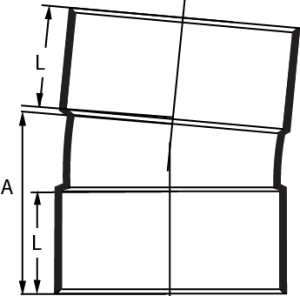

15° Bends F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 54020 | 40 | 32 | 27 | 5 | 60 |
| 54050 | 50 | 35 | 30 | 10 | 120 |
| 54080 | 65 | 44 | 38 | 5 | 75 |
| 46010 | 100 | 75 | 50 | 1 | 40 |
| 47000 | 150 | 87 | 76 | 6 | 12 |
10° Bends M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Quantity | Carton Quantity |
| 50164 | 150 |

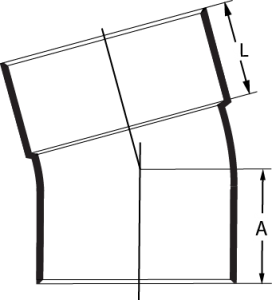

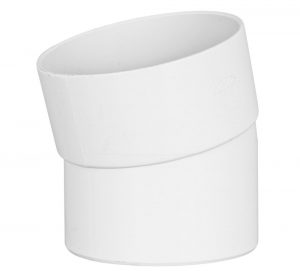

15° Bends M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 46130 | 100 | 50 | 62 | 1 | 25 |
| 47050 | 150 | 76 | 89 | 1 | 12 |
| 50165 | 150 | 1 |
22.5° Bends F-F
| Vinidex Code | Nominal Size (mm) | Angle | Min. Order Quantity | Carton Quantity |
| 48009 | 300 | 22.5 |

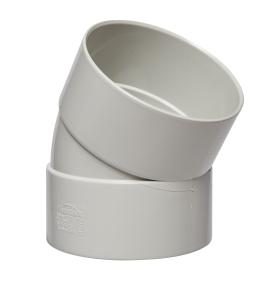

30° Bends F-F
 |
 |
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 46020 | 100 | 50 | 76.4 | 1 | 34 |
| 47005 | 150 | 1 |

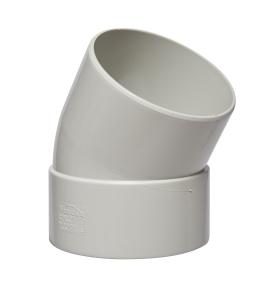

30° Bends M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 46140 | 100 | 50 | 76 | 1 | 20 |

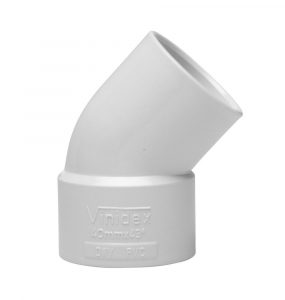

43° Bends M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 54495 | 40 | 27 | 37.2 | 10 | 60 |
| 54505 | 50 | 30 | 48.3 | 10 | 100 |
| 54515 | 50 x 40 | 10 | 40 | ||
| 54530 | 65 | 38 | 59 | 10 | 70 |
| 46150 | 100 | 50 | 78 | 1 | 28 |
| 47060 | 150 | 76 | 126 | 1 | 5 |
| 50171 | 150 | 1 |

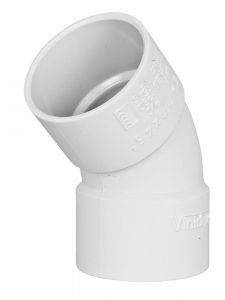

45° DWV F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 54030 | 40 | 27 | 44.1 | 20 | 100 |
| 54060 | 50 | 30 | 55 | 1 | 65 |
| 54090 | 65 | 38 | 65 | 10 | 50 |
| 54120 | 80 | 44 | 64.4 | 5 | 25 |
| 46040 | 100 | 50 | 72 | 1 | 28 |
| 47010 | 150 | 76 | 136.2 | 1 | 8 |
| 47410 | 225 | 110 | 200 | 1 | 5 |
| 47610 | 225 | 125 | 239 | 1 | |
| 48010 | 300 | 175 | 358 | 1 | |
| 48065 | 300-100 | 1 | |||
| 48011 | 300 | 175 | 295 | 1 | |
| 48470 | 375 | 200 | 416 | 1 |

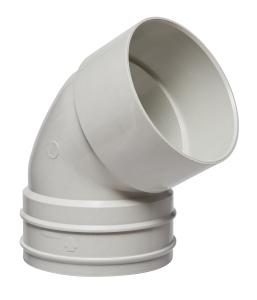

60° Bends F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 46070 | 100 | 50 | 93 | 5 | 20 |

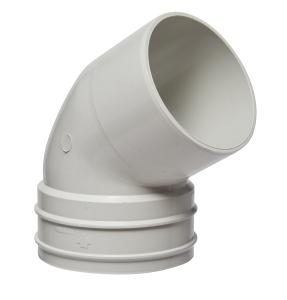

60° Bends M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 46160 | 100 | 50 | 95 | 5 | 20 |

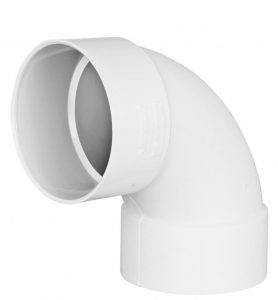

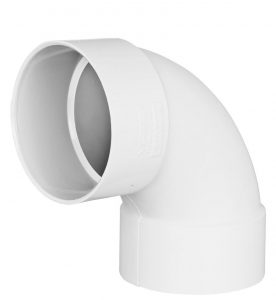

88° Bends F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 54040 | 40 | 27 | 54.5 | 20 | 140 |
| 54070 | 50 | 30 | 1 | 45 | |
| 54100 | 65 | 38 | 81.4 | 10 | 50 |
| 54140 | 80 | 44 | 98.1 | 10 | 40 |
| 46080 | 100 | 50 | 117 | 1 | 20 |
| 47030 | 150 | 76 | 199 | 1 | 6 |

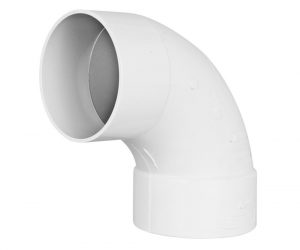

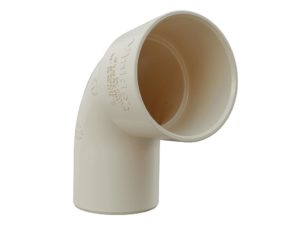

88° Bends M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 54500 | 40 | 27 | 57.5 | 200 | |
| 54520 | 50 | 30 | 67.9 | 10 | 40 |
| 54542 | 80 | 44 | 98 | 6 | 12 |
| 46170 | 100 | 50 | 140 | 1 | 20 |
| 47090 | 150 | 81 | 202.2 | 1 | 6 |
90° Bends F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 47420 | 225 | 110 | 295 | 1 | 3 |
| 47620 | 225 | 110 | 426 | 1 | |
| 51020 | 225 | 1 | |||
| 48012 | 300 | 1 | |||
| 48020 | 300 | 175 | 596 | 1 | |
| 48480 | 375 | 200 | 638 | 1 |

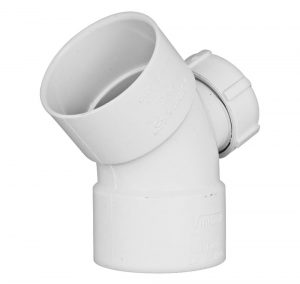

45° I.O. Bends F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 54280 | 40 | 27 | 43.4 | 20 | 140 |
| 54310 | 50 | 30 | 53 | 5 | 85 |
| 54340 | 65 | 38 | 65 | 5 | 50 |

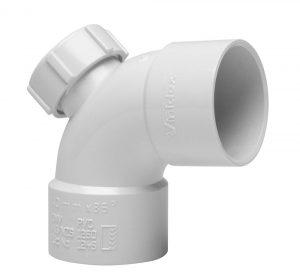

88° I.O. Bends F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 54350 | 65 | 38 | 81.4 | 10 | 60 |
| 54380 | 80 | 44 | 98 | 1 | 25 |

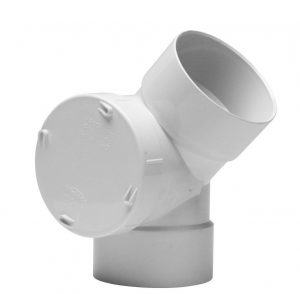

45° Side Access Bends F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 46050 | 100 | 50 | 116.9 | 1 | 12 |

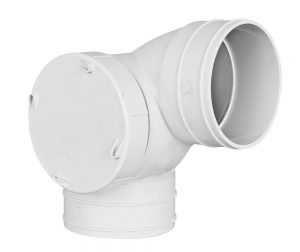

88° Side Access Bends F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 46090 | 100 | 50 | 116.9 | 5 | 10 |

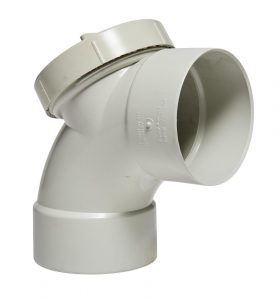

88° Rear Access Bends F-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 46100 | 100 | 50 | 140 | 1 | 24 |
