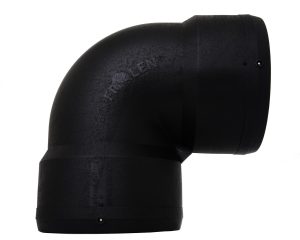

90° Elbow SDR 11 PE 100






Contact Vinidex Customer Service for availability of products on this page.
































                    Vinidex Code
                    Nominal Size (mm)
                    SDR
                    PN Water
                    PN Gas
                    Friatec Code
                    Frialen Model Code





                              88630
                              *20
                              11
                              16
                              10
                              3701020
                              W90°




                              88631
                              25
                              11
                              16
                              10
                              612091
                              W90°




                              88632
                              32
                              11
                              16
                              10
                              612093
                              W90°




                              88633
                              40
                              11
                              16
                              10
                              612095
                              W90°




                              88634
                              50
                              11
                              16
                              10
                              612097
                              W90°




                              88635
                              63
                              11
                              16
                              10
                              612099
                              W90°




                              88636
                              75
                              11
                              16
                              10
                              612101
                              W90°




                              88637
                              90
                              11
                              16
                              10
                              612103
                              W90°




                              88638
                              110
                              11
                              16
                              10
                              612105
                              W90°




                              88639
                              125
                              11
                              16
                              10
                              612107
                              W90°




                              88641
                              160
                              11
                              16
                              10
                              615276
                              W90°




                              88642
                              180
                              11
                              16
                              10
                              615689
                              W90°




                              88643
                              200
                              11
                              16
                              10
                              616265
                              W90°




                              88644
                              225
                              11
                              16
                              10
                              615690
                              W90°




                              88645
                              250
                              11
                              16
                              10
                              616408
                              W90° XL




                              88646
                              280
                              11
                              16
                              10
                              616409
                              W90° XL




                              88647
                              315
                              11
                              16
                              10
                              616410
                              W90° XL




                              *4.7mm adaptors required
