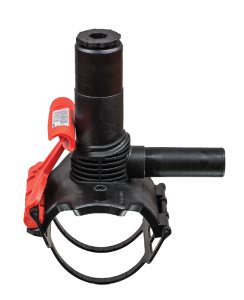

Pressure Tapping Tee



Contact Vinidex Customer Service for availability of products on this page.



With Underclamp SDR 11 PE 100

Vinidex Code Nominal Size (mm) SDR PN Water PN Gas Friatec Code Frialen Model Code
88963 40 x 20 11 16 10 612630 DAA
88964 40 x 32 11 16 10
88966 50 x 25 11 16 10 612702 DAA
88967 50 x 32 11 16 10 615080 DAA
88968 63 x 20 11 16 10 612631 DAA
88969 63 x 25 11 16 10 612633 DAA
88970 63 x 32 11 16 10 612632 DAA
88971 63 x 40 11 16 10 612623 DAA
88973 63 x 63 11 16 10 616334 DAA
88981 90 x 32 11 16 10 612634 DAA
88982 90 x 40 11 16 10 615656 DAA (KIT)
88983 90 x 50 11 16 10 612636 DAA
88984 90 x 63 11 16 10 612701 DAA
88986 110 x 32 11 16 10 612637 DAA
88987 110 x 40 11 16 10 615662 DAA (KIT)
88988 110 x 50 11 16 10 612638 DAA
88989 110 x 63 11 16 10 612624 DAA
88991 125 x 32 11 16 10 612649 DAA
88993 125 x 50 11 16 10 612639 DAA
88994 125 x 63 11 16 10 612309 DAA
88998 140 x 50 11 16 10 615037 DAA
89001 160 x 32 11 16 10 612641 DAA
89003 160 x 50 11 16 10 612642 DAA
89004 160 x 63 11 16 10 612650 DAA
89006 180 x 32 11 16 10 612651 DAA
89008 180 x 50 11 16 10 612644 DAA
89009 180 x 63 11 16 10 612652 DAA
89011 200 x 32 11 16 10 612654 DAA
89013 200 x 50 11 16 10 612645 DAA
89014 200 x 63 11 16 10 612659 DAA
89016 225 x 32 11 16 10 612657 DAA
89018 225 x 50 11 16 10 612646 DAA
89019 225 x 63 11 16 10 612655 DAA

Top Loading with Extra Long Outlet Spigot SDR 11 PE 100



Vinidex Code Nominal Size (mm x mm) SDR PN Water PN Gas Friatec Code Frialen Model Code
89024* 250-315 x 63 (400) 11 16 10 615339 DAA-TL
*Suitable for DN 250 to 315 SDR 11 pipes and DN 250 to 400 SDR17 pipes.
