Contact Vinidex Customer Service for availability of products on this page.

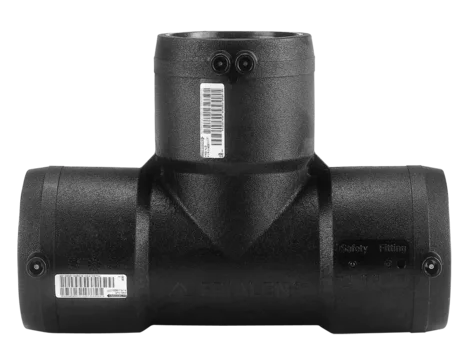

T Tee sizes 75-225 |

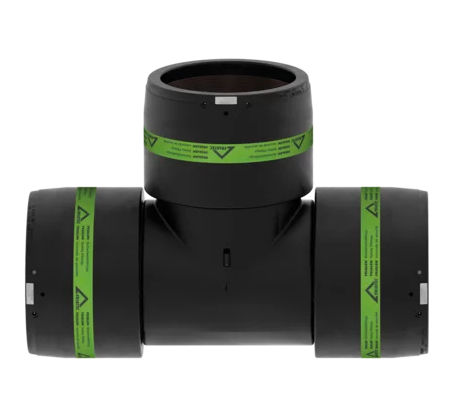

T XL Tee sizes 250-315 |

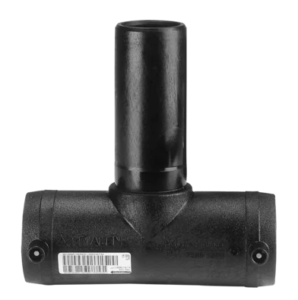

TA Tee sizes 20-63 |
90° Equal Tee SDR 11 PE 100
| Vinidex Code | Nominal Size (mm) | SDR | PN Water | PN Gas | Friatec Code | Frialen Model Code | Configuration |
| 89558 | 20 x 20 x 20 | 11 | 16 | 10 | 616685 | TA | SO/SO/SP |
| 89559 | 25 x 25 x 25 | 11 | 16 | 10 | 616338 | TA | SO/SO/SP |
| 89560 | 32 x 32 x 32 | 11 | 16 | 10 | 615719 | TA | SO/SO/SP |
| 89561 | 40 x 40 x 40 | 11 | 16 | 10 | 615720 | TA | SO/SO/SP |
| 89562 | 50 x 50 x 50 | 11 | 16 | 10 | 615721 | TA | SO/SO/SP |
| 89563 | 63 x 63 x 63 | 11 | 16 | 10 | 615722 | TA | SO/SO/SP |
| 88509 | 75 x 75 x 75 | 11 | 16 | 10 | 612165 | T | SO/SO/SO |
| 88510 | 90 x 90 x 90 | 11 | 16 | 10 | 612166 | T | SO/SO/SO |
| 88511 | 110 x 110 x 110 | 11 | 16 | 10 | 612167 | T | SO/SO/SO |
| 88512 | 125 x 125 x 125 | 11 | 16 | 10 | 612168 | T | SO/SO/SO |
| 88513 | 160 x 160 x 160 | 11 | 16 | 10 | 615277 | T | SO/SO/SO |
| 88514 | 180 x 180 x 180 | 11 | 16 | 10 | 615691 | T | SO/SO/SO |
| 88515 | 200 x 200 x 200 | 11 | 16 | 10 | 616266 | T | SO/SO/SO |
| 88516 | 225 x 225 x 225 | 11 | 16 | 10 | 615692 | T | SO/SO/SO |
| 88517 | 250 x 250 x 250 | 11 | 16 | 10 | 616412 | T-XL | SO/SO/SP |
| 89269 | 280 x 280 x 280 | 11 | 16 | 10 | 616413 | T-XL | SO/SO/SP |
| 89297 | 315 x 315 x 315 | 11 | 16 | 10 | 616414 | T-XL | SO/SO/SP |
| *4.7mm adaptors required |
